Starting System < M/T >

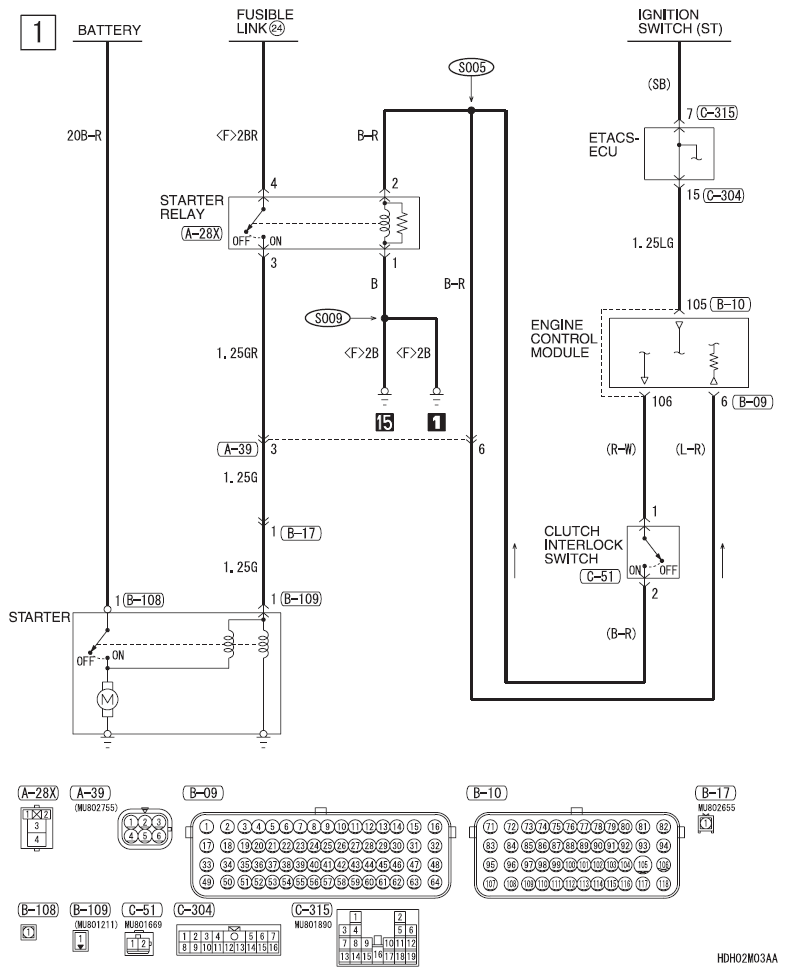

Fig 1: Starting System (M/T) - Circuit Diagram

G09620730

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
