Immobilizer System < TC-SST >

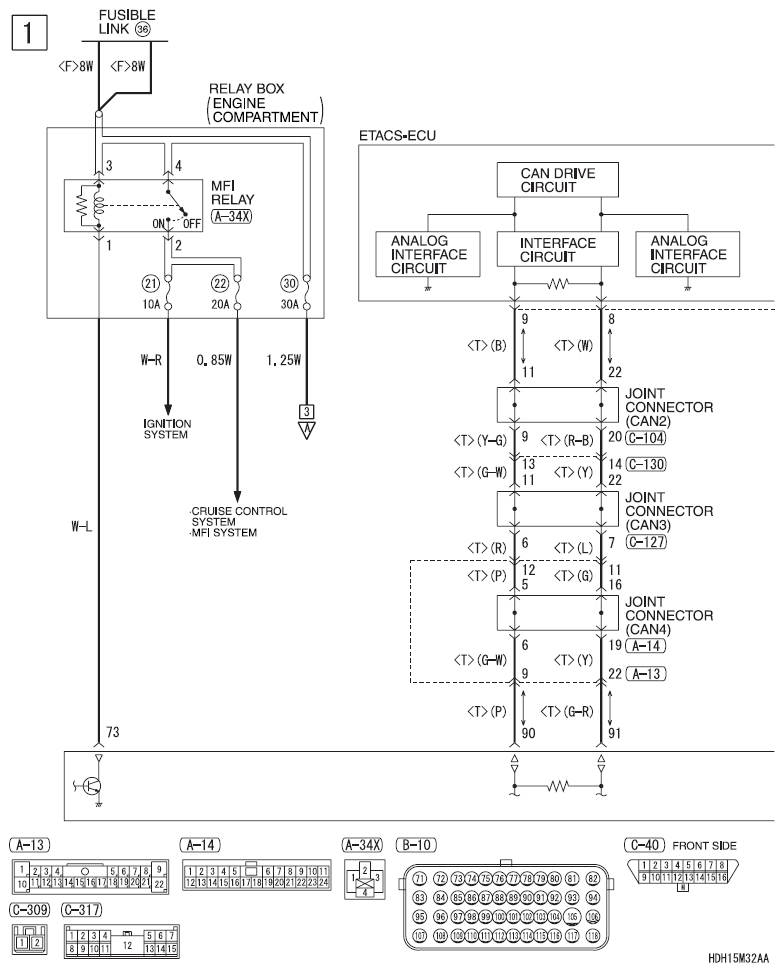

Fig 1: Immobilizer System (TC-SST) - Circuit Diagram (1 Of 4)
G09620992Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

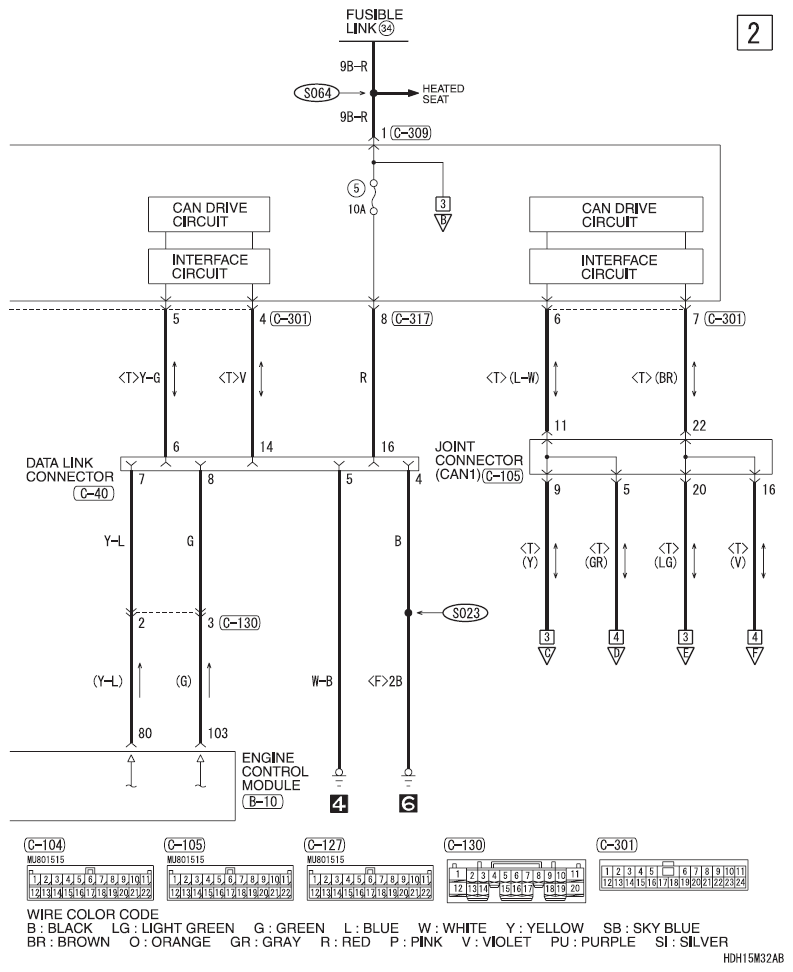

Fig 2: Immobilizer System (TC-SST) - Circuit Diagram (2 Of 4)
G09620993Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

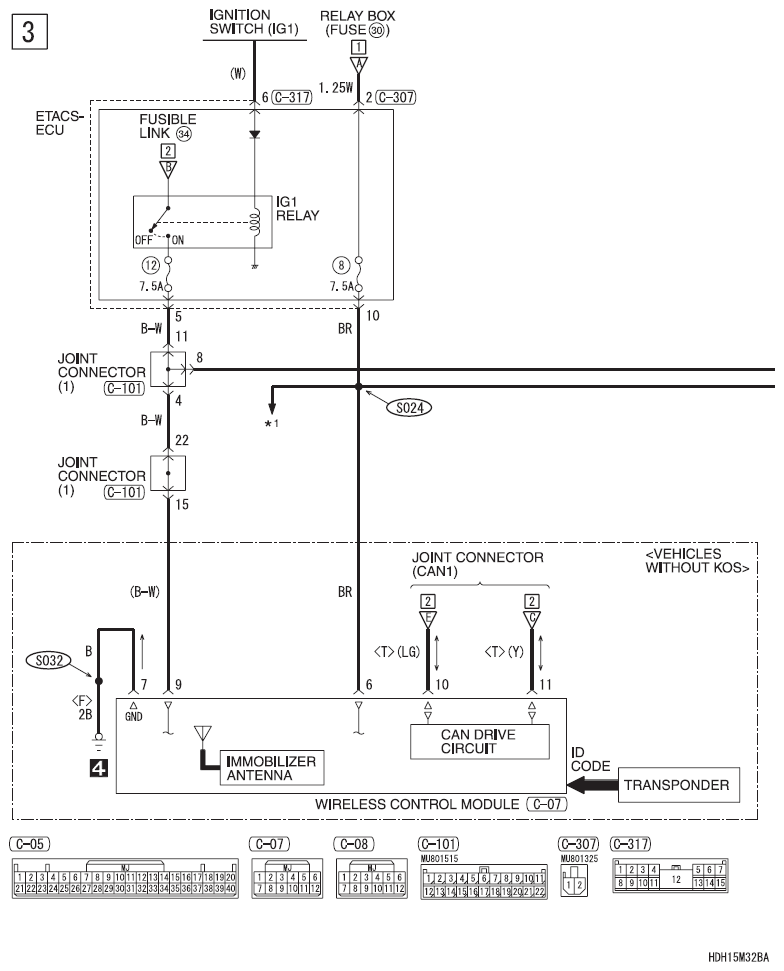

Fig 3: Immobilizer System (TC-SST) - Circuit Diagram (3 Of 4)
G09620994Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

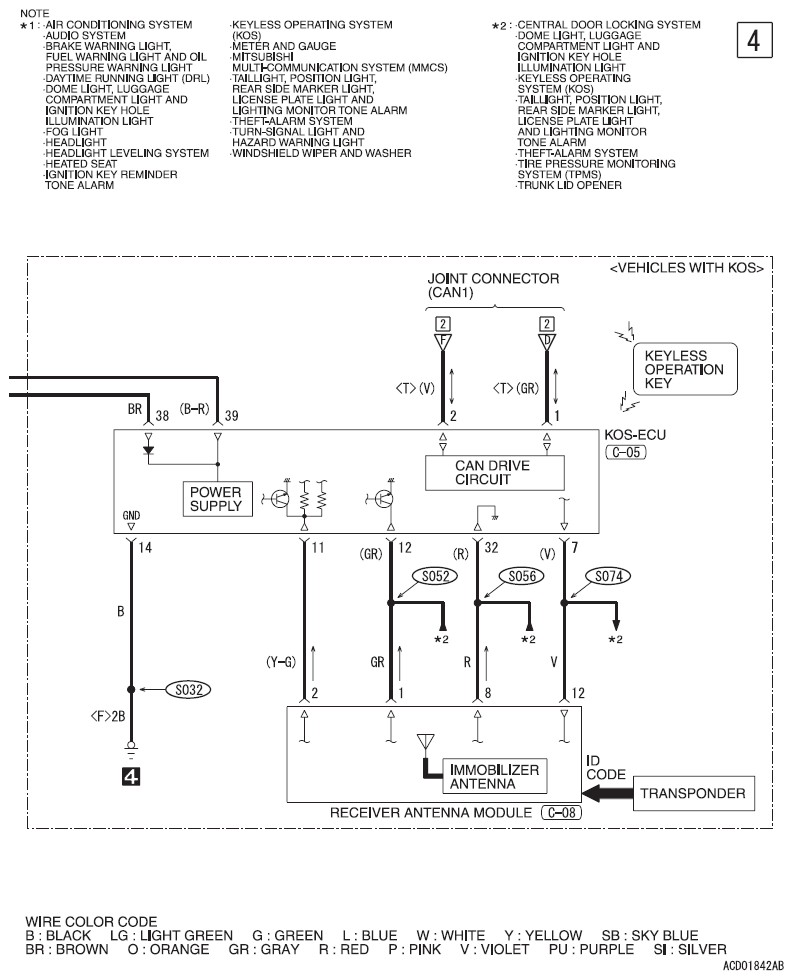

Fig 4: Immobilizer System (TC-SST) - Circuit Diagram (4 Of 4)
G09620995Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
