Fog Light

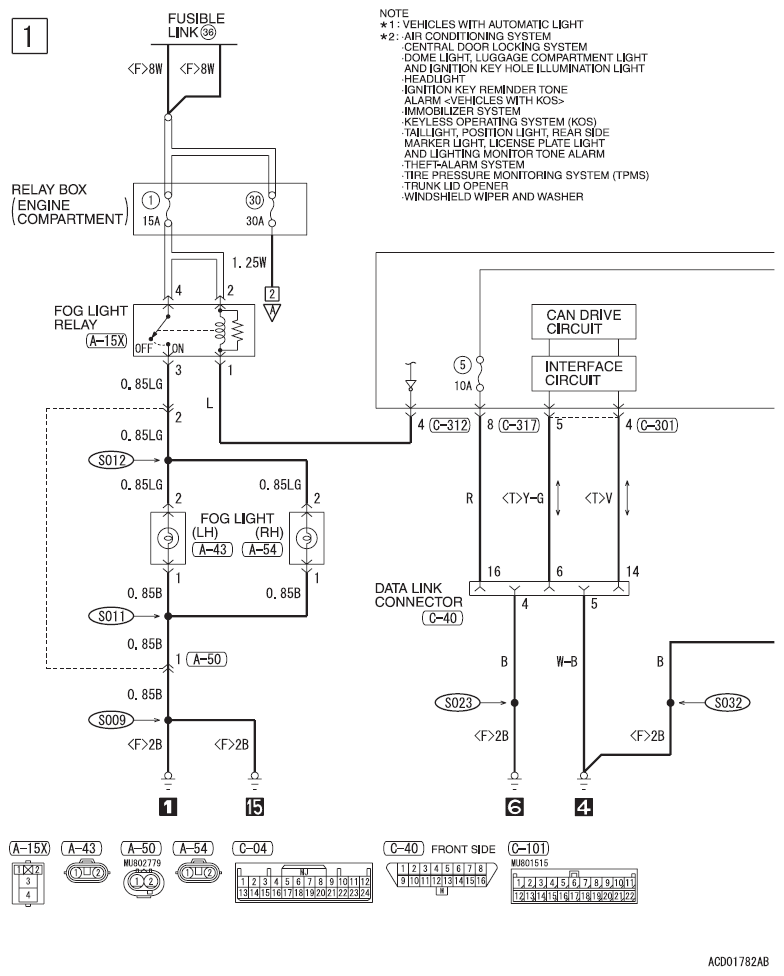

Fig 1: Fog Light - Circuit Diagram (1 Of 2)

G09620803

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

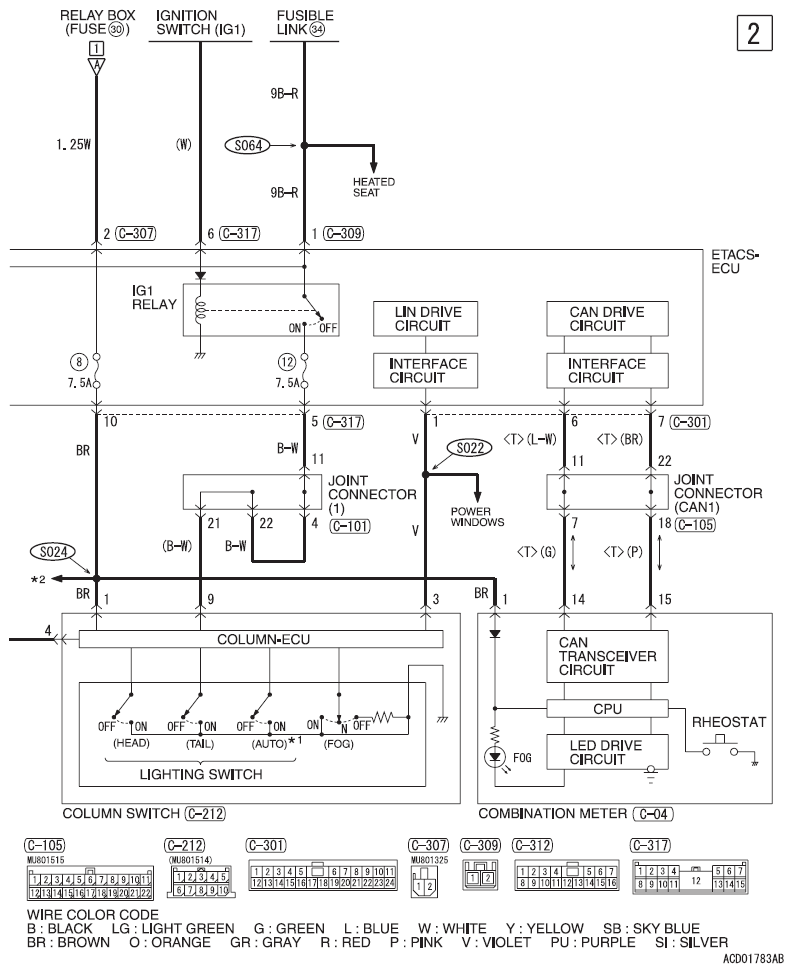

Fig 2: Fog Light - Circuit Diagram (2 Of 2)

G09620804

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
