Cooling System

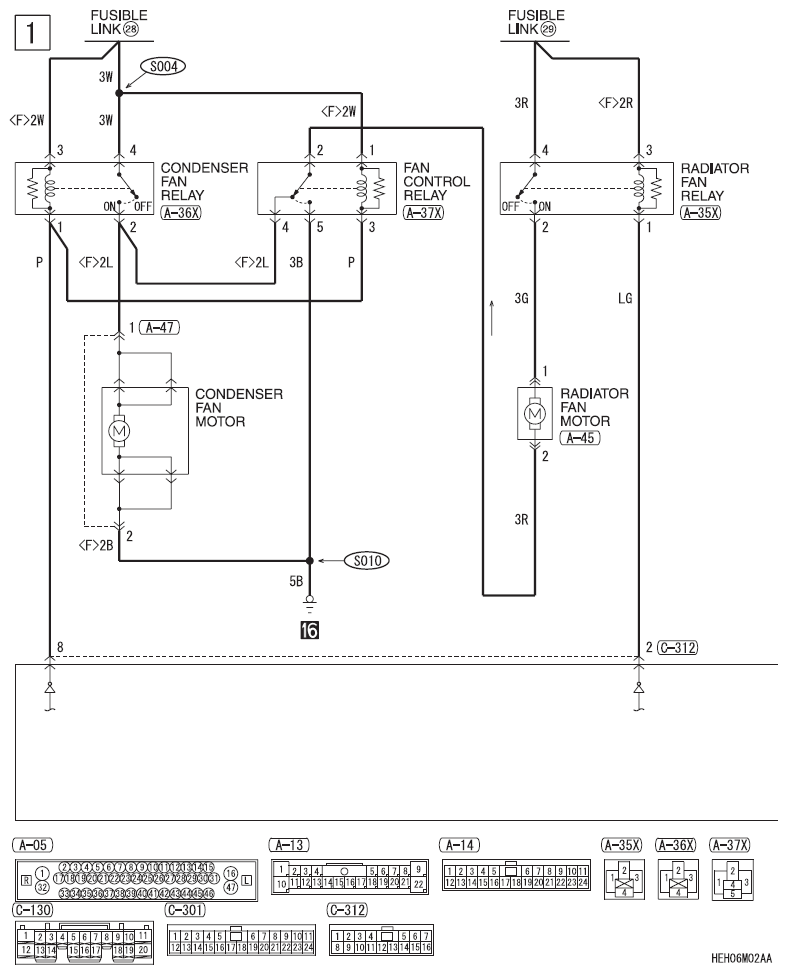

Fig 1: Cooling System - Circuit Diagram (1 Of 4)
G09620766Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

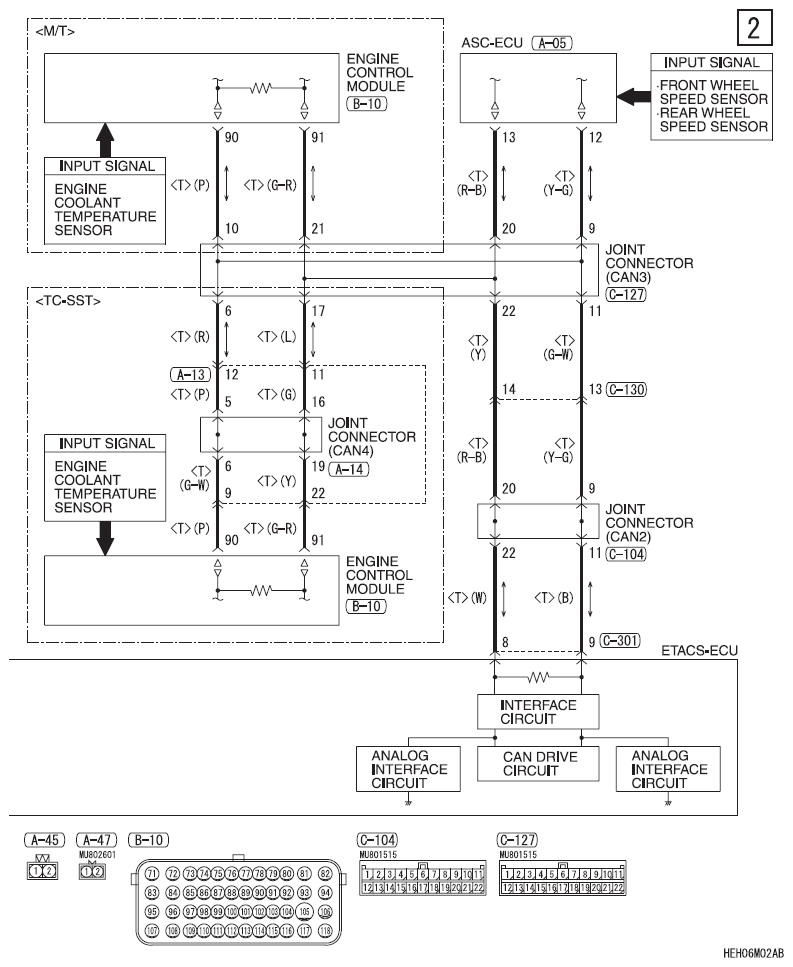

Fig 2: Cooling System - Circuit Diagram (2 Of 4)
G09620767Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

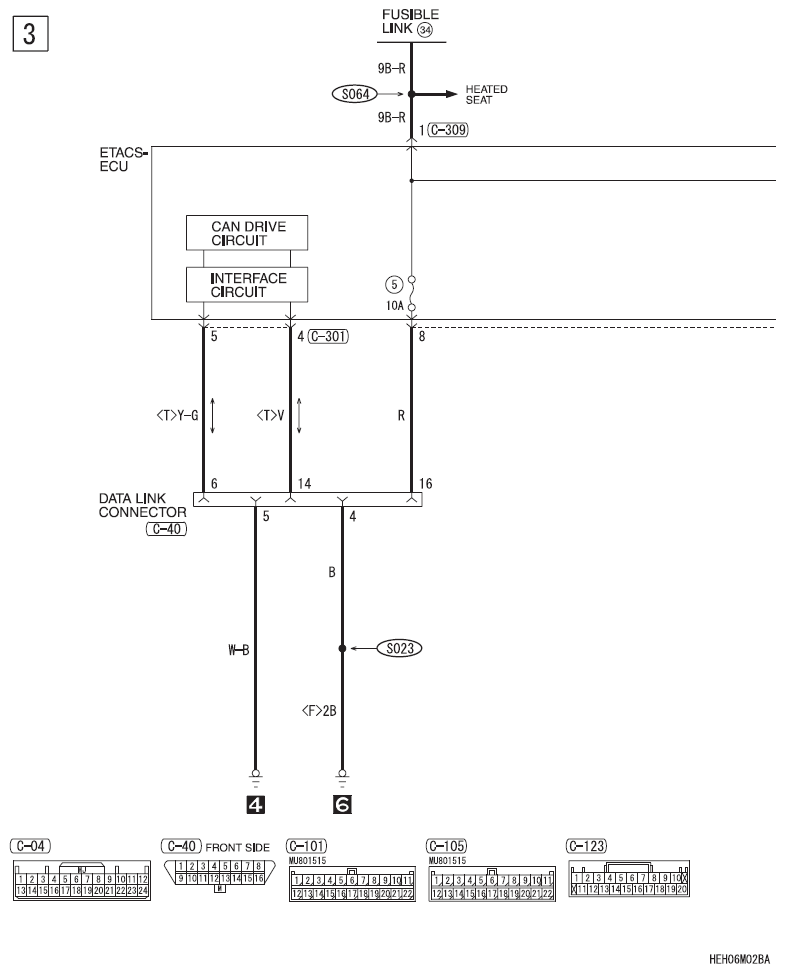

Fig 3: Cooling System - Circuit Diagram (3 Of 4)
G09620768Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

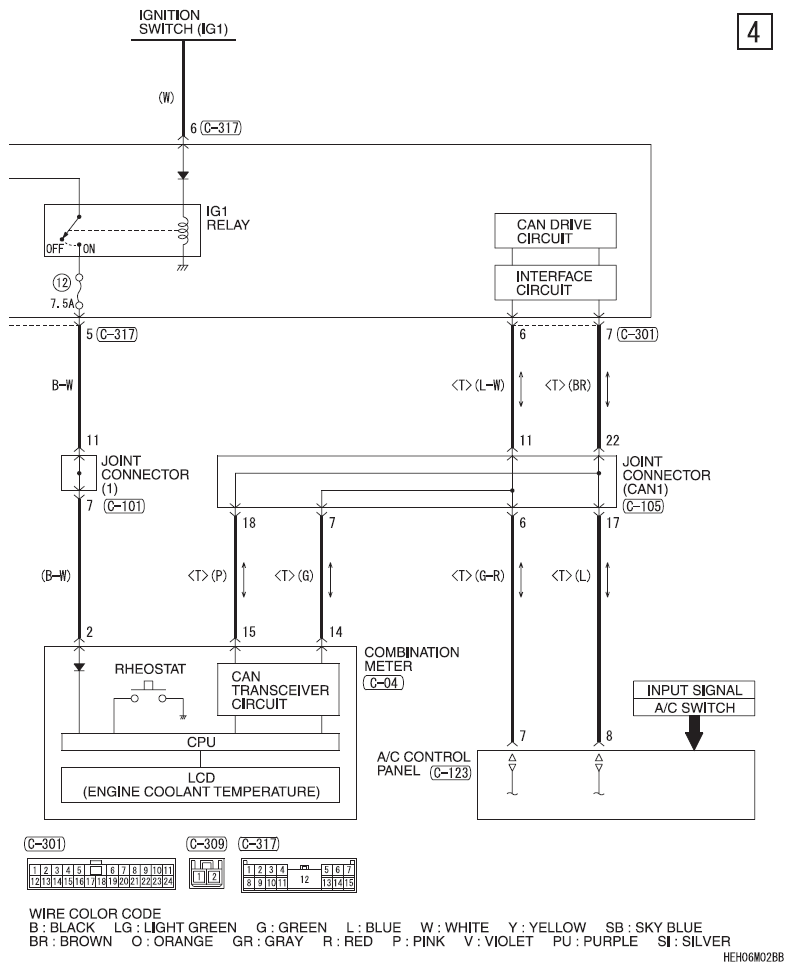

Fig 4: Cooling System - Circuit Diagram (4 Of 4)
G09620769Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
