Accessory Socket

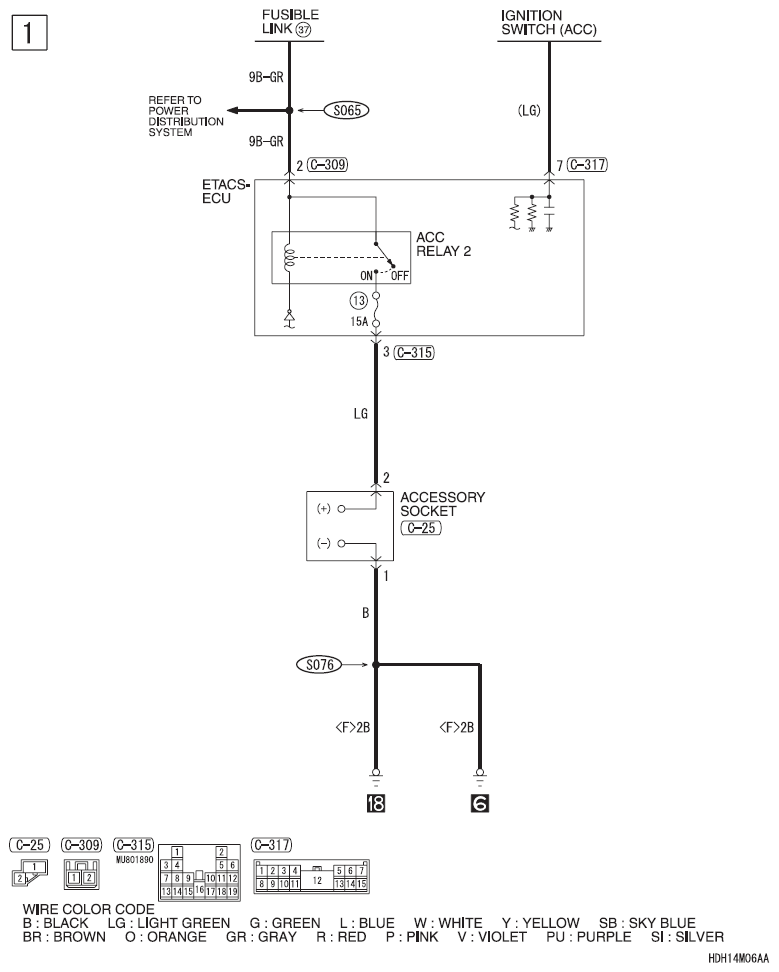

Fig 1: Accessory Socket - Circuit Diagram

G09620930

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
