Transfer Oil Change

  1. Remove the engine room under cover front B assembly. (Refer to REMOVAL AND INSTALLATION .)
  2. Remove the drain plug and gasket to drain the oil.
  3. Install the drain plug and new gasket, then tighten them to the specified torque.

    Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)

  4. Remove the filler plug and gasket, then fill the oil up to the lower edge of the filler plug hole.

    Brand name: DiaQueen LSD gear oil

    Quantity: 0.8 dm 3  (0.85 quarts)

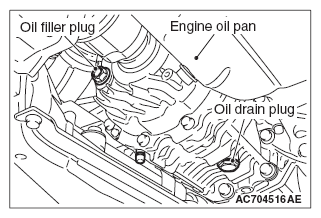

    Fig 1: Identifying Drain Plug, Oil Filler Plug And Engine Oil Pan
    G09639570Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  5. Install the filler plug and new gasket, then tighten them to the specified torque.

    Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)

  6. Install the engine room under cover front B assembly. (Refer to REMOVAL AND INSTALLATION .)
    Fig 2: Identifying Filler Plug Hole, Gasket And Transfer Oil
    G09639571Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
