Oil Pressure Check
WARNING: This page is about a different variant/trim than selected.
- Check engine oil level.

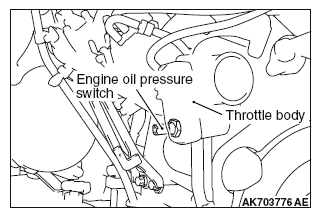

- Remove the engine oil pressure switch. (Refer to REMOVAL AND INSTALLATION .)
- Install the engine oil pressure gauge.NOTE: Use a 1/8 pipe thread adapter.
- Run the engine to warm it.
- After the engine has been warmed up, check that engine oil pressure is within the standard value.
Standard value:
At idle: 29 kPa (4.2 psi) or more
At 3, 500 r/min: 294 - 686 kPa (43 - 100 psi)
- Remove the engine oil pressure gauge.
- Install the engine oil pressure switch. (Refer to REMOVAL AND INSTALLATION .)
