Windshield Wiper Switch Check
WARNING: This page is about a different variant/trim than selected.

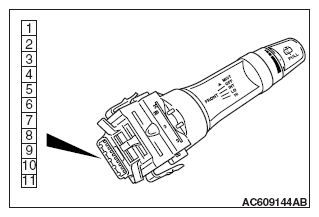

Check continuity between the switch terminals.
| Switch position | Tester connection | Specified condition |
|---|---|---|
| OFF | 6 - 11, 6 - 10, 6 - 9, 6 - 8 |
Open circuit |
| Windshield mist wiper switch | 6 - 11 | Continuity (Less than 2 ohms) |
| Windshield intermittent wiper switch | 6 - 10 | |
| Windshield low-speed wiper switch | 6 - 9 | |
| Windshield high-speed wiper switch | 6 - 8 |
