Home >> Mitsubishi >> 2015 >> Lancer Evolution Final Edition >> Repair and Diagnosis >> External Pages >> Different variant/trim >> Section 57 (Headlight System - With Diagnostics - Lancer) >> On-Vehicle Service >> Headlight Removal And Installation >> Notes

Headlight Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

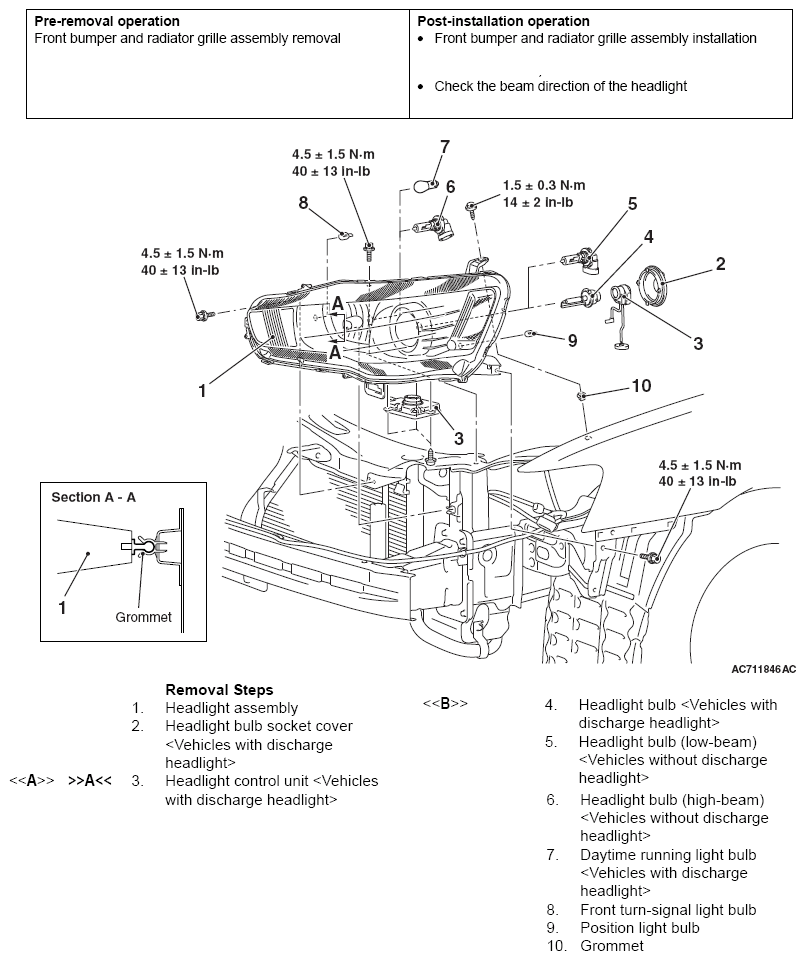

Fig 1: Exploded View Of Headlight Assembly With Torque Specifications
G09630046Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
