Removal And Installation (2.0L Engine Turbo): Notes

WARNING: This page is about a different variant/trim than selected.

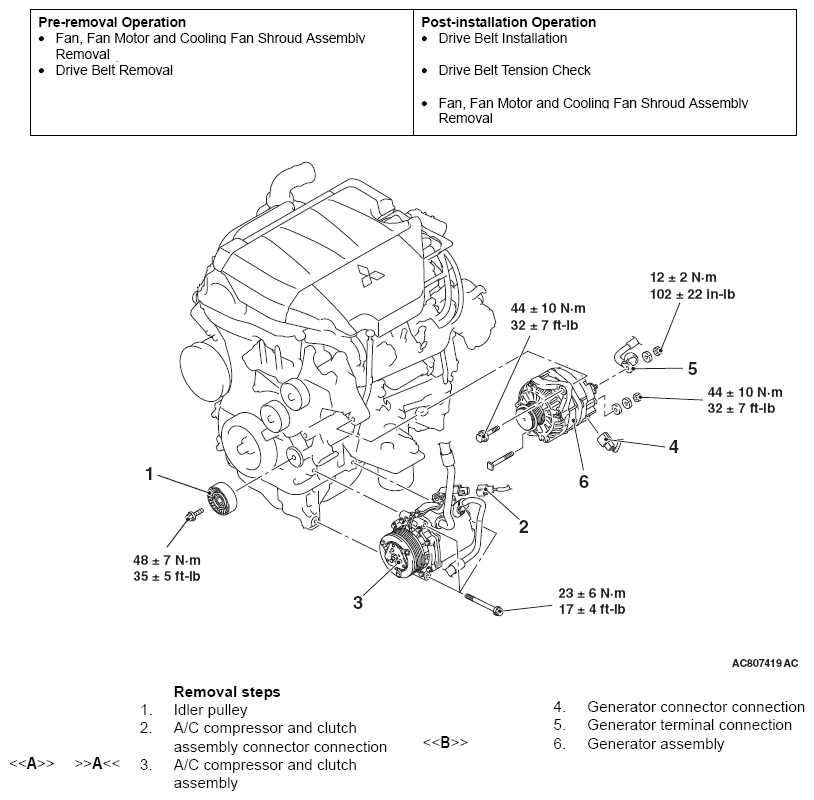

Fig 1: Removing/Installing Generator Assembly Components With Torque Specification - 2.0L Engine Turbo
G09625362Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
