Disassembly And Assembly < Fwd >: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: As for the EBJ assembly, only the EBJ boot can be replaceable, and other parts cannot be disassembled.

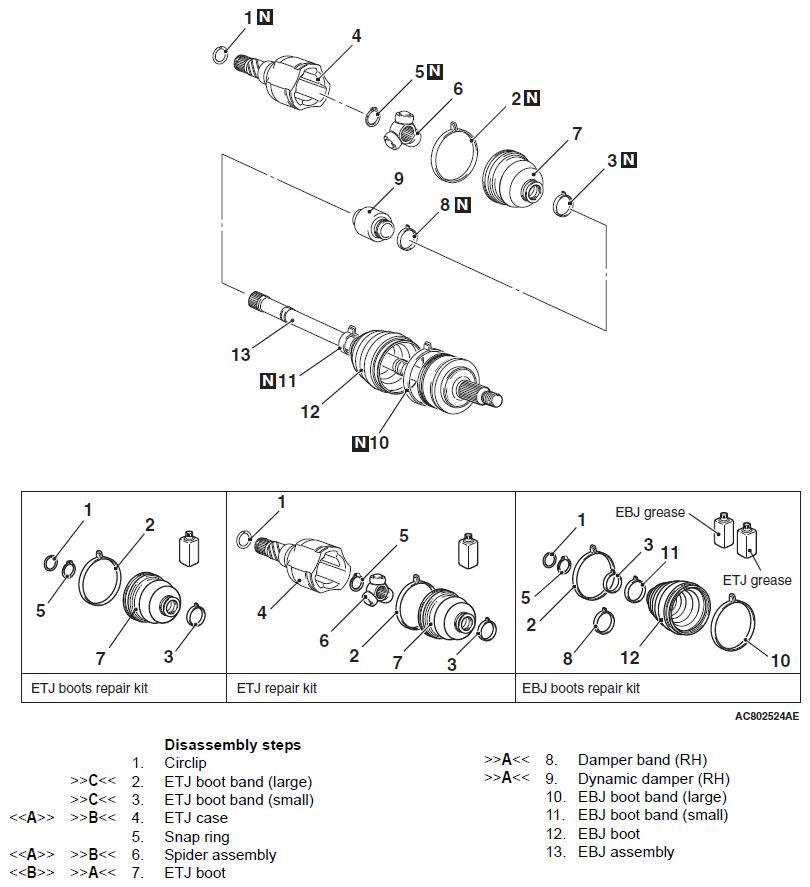

Fig 1: Disassembling/Assembling Driveshaft Assembly (FWD)
G09626550Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
