Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

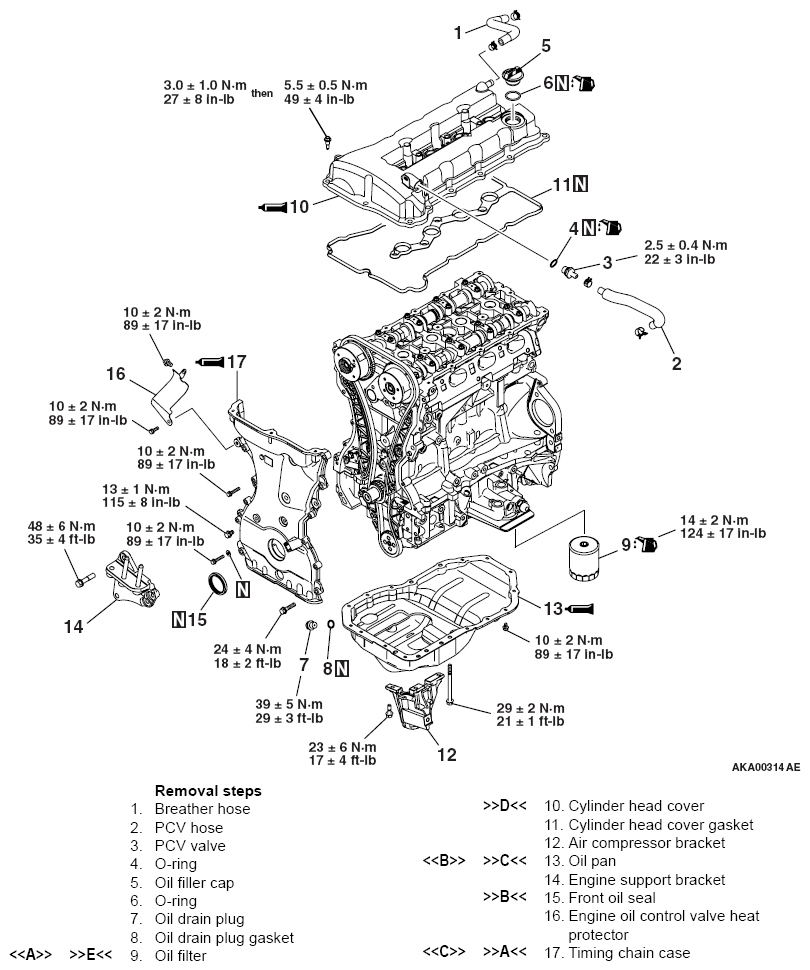

Fig 1: Removing/Installing Oil Pan And Timing Chain Case Components With Torque Specifications
G09639839Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
