Section 16 (Interior - Lancer)
>>
Trims
>>
Liftgate Trim
>>
Removal And Installation
Removal And Installation
WARNING:
This page is about a different variant/trim than selected.

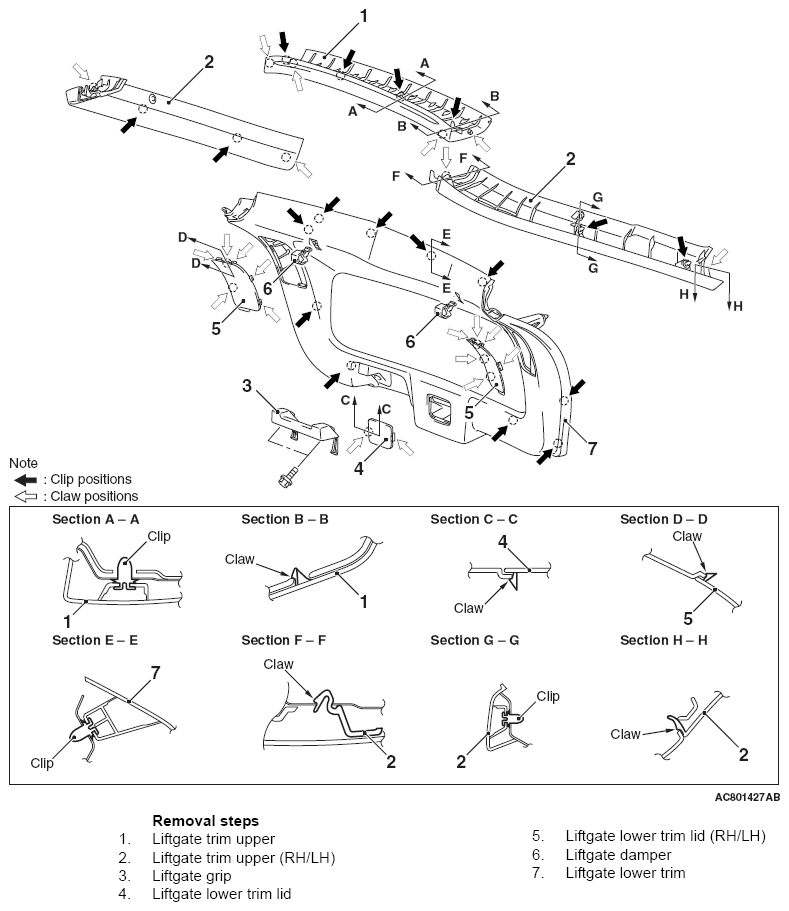

Fig 1: Exploded View Of Liftgate Trim
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
