Removal And Installation

WARNING: This page is about a different variant/trim than selected.

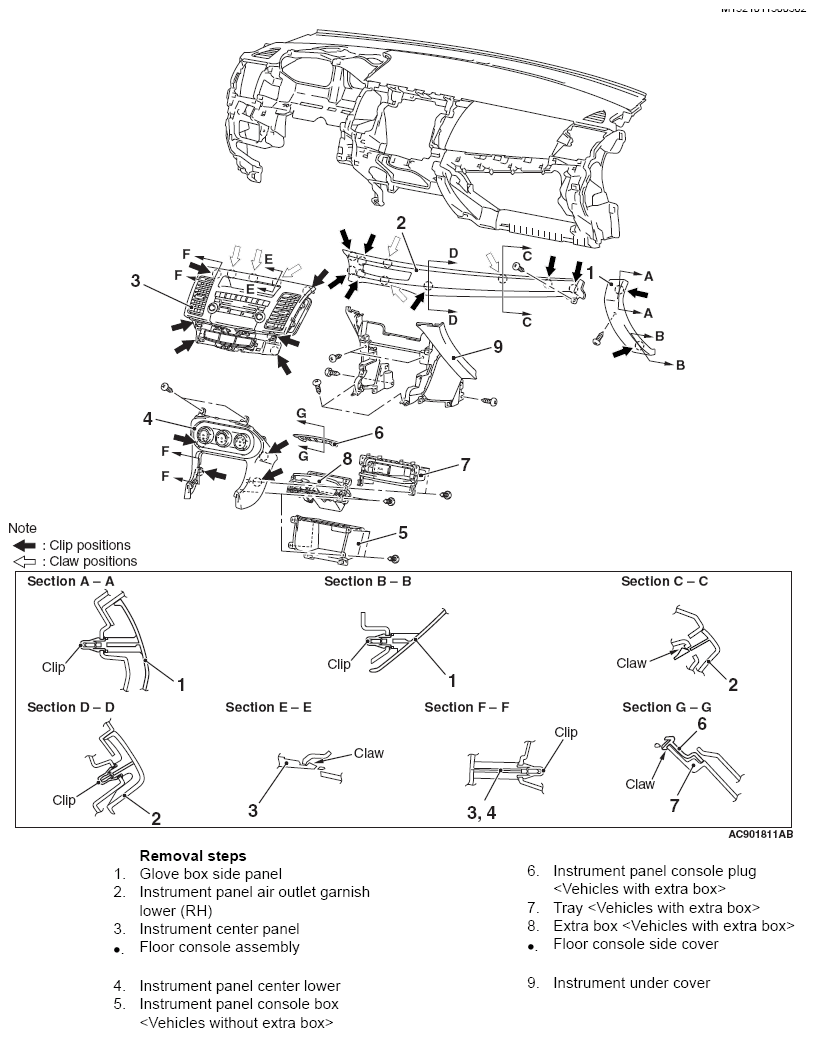

Fig 1: Exploded View Of Instrument Center Panel
G09629113Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For 2016:

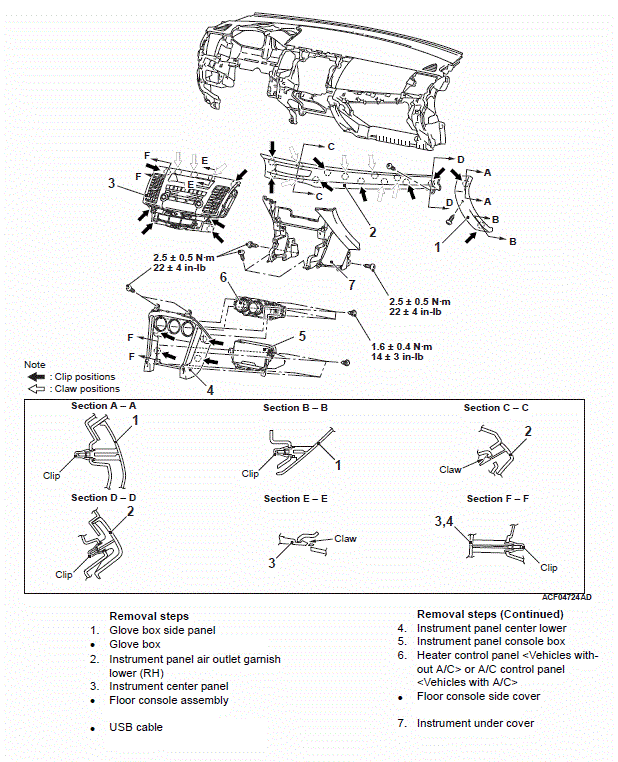

Fig 2: Exploded View Of Instrument Center Panel (2016)
G00563919Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
