>> B << Slotted Spring Pin Installation

WARNING: This page is about a different variant/trim than selected.

Drive in the slotted spring pin to the illustrated dimension.

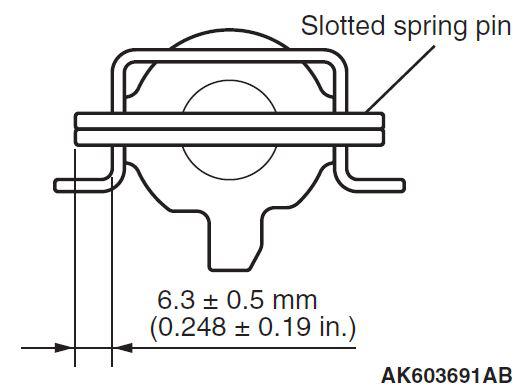

Fig 1: Identifying Slotted Spring Pin Dimension
G05375696Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
