Engine Mounting Insulator Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: When supporting the engine assembly with a garage jack, be careful not to deform the engine oil pan.

Place a garage jack against the engine oil pan with a piece of wood in between, and install the engine mounting insulator while adjusting the position of the engine assembly.
Remove special tool MB991454.
Secure the special tool for holding the engine assembly, which will be used when the transaxle assembly is installed (Refer to TRANSAXLE ASSEMBLY ) < M/T > or (Refer to TRANSAXLE ASSEMBLY ) < CVT >.
- MB991928 or MB991895
- MB991527
- MB992201

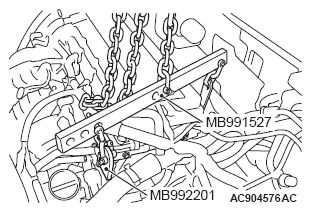

  Fig 1: Holding Engine Assembly
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

  Fig 2: Identifying Special Tool MB991895
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

  Fig 3: Identifying Special Tool MB991527 And MB992201
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
