Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

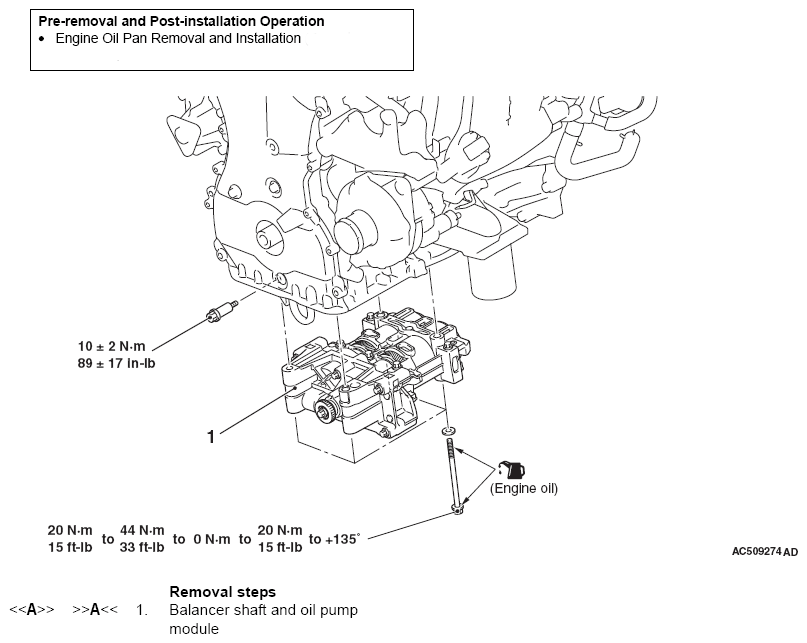

Fig 1: Removing/Installing Balancer Shaft And Oil Pump Module Components With Torque Specification
G09619739Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
