Removal And Installation (2.0L Engine Non-Turbo, 2.4L Engine)

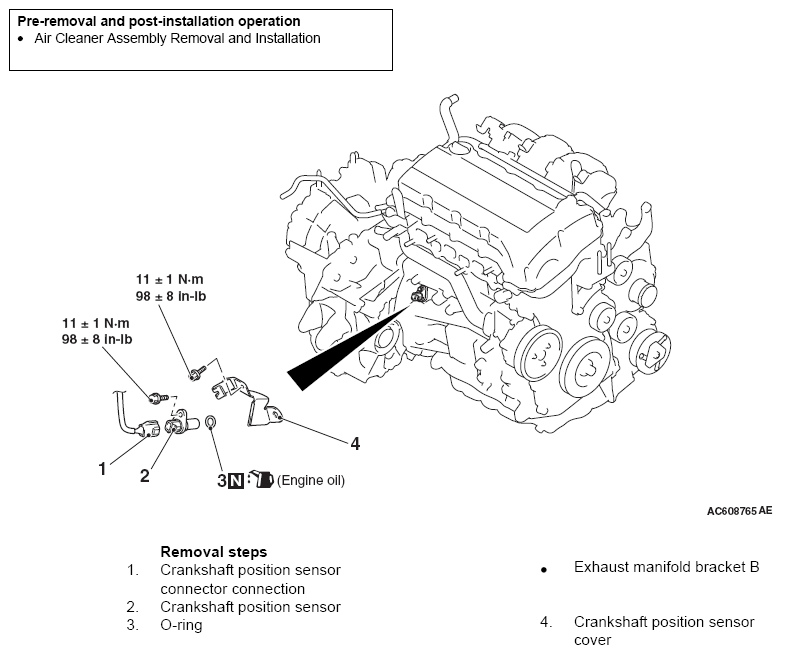

Fig 1: Removing/Installing Crankshaft Position Sensor Components With Torque Specifications - 2.0L Engine Non-Turbo, 2.4L Engine
G09625428Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
