Ignition System
>>
Camshaft Position Sensor
>>
Removal And Installation (2.0L Engine Non-Turbo, 2.4L Engine)
Removal And Installation (2.0L Engine Non-Turbo, 2.4L Engine)

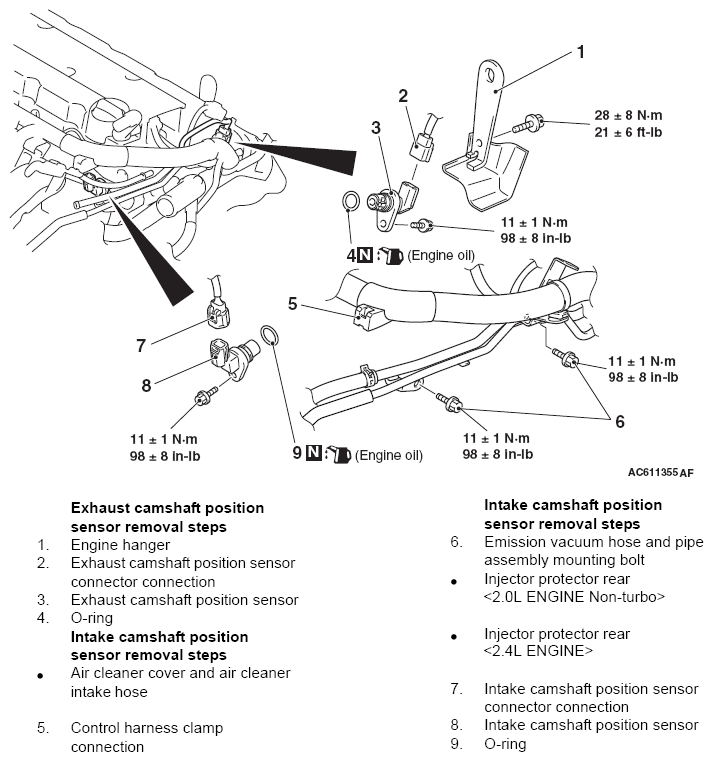

Fig 1: Removing/Installing Camshaft Position Sensor Components With Torque Specifications - 2.0L Engine Non-Turbo, 2.4L Engine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
