Nominal Resistance Of The Fuel Level Sensor

  1. Remove the fuel pump module (Refer to FUEL TANK ).
  2. When float of the fuel level sensor is in stopper positions F and E, ensure that resistance between the fuel level sensor terminal and ground terminal is within the standard value.
    STANDARD VALUE SPECIFICATION

    Float position Gauge resistance value (ohms)
    Main Sub
    Stopper position "F" 6.5 ± 1.0 6.5 ± 1.0
    Stopper position "E" 41.9 ± 1.0 78.1 ± 1.0
  3. When the float is moved slowly between stopper positions "F" and "E", ensure that the resistance is smoothly changing.

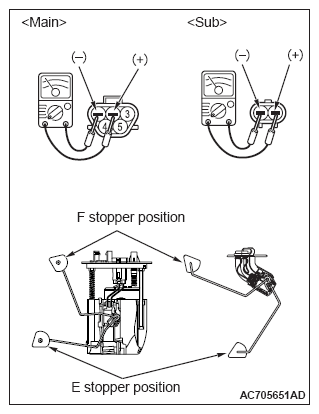

    Fig 1: Checking Fuel Level Sensor
    G09652466Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
