General Information: Tweeter

For the front door sash trim, two types of tweeters, the balance dome tweeter < Vehicles with 6 speakers > and soft dome tweeter < Vehicles with 9 speakers 7 position system >, have been established. The soft dome tweeter can play clearer treble with less distortion compared to the balance dome tweeter.

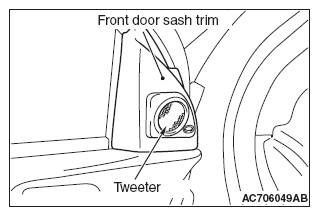

Fig 1: Identifying Tweeter And Front Door Sash Trim

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

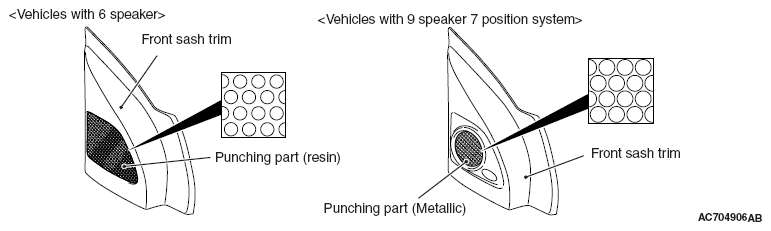

Fig 2: Identifying Punching Part (Resin And Metallic)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Also, two types of front sash trim, a resin type < vehicles with 6 speakers > and punching metal type < vehicles with 9 speaker 7 position system >, are available. With the punching metal type, the metal is adopted for the punching part to enlarge the punching opening, enabling the playback of cleaner treble.
