DTC 15: Cruise Control Switch System: Notes

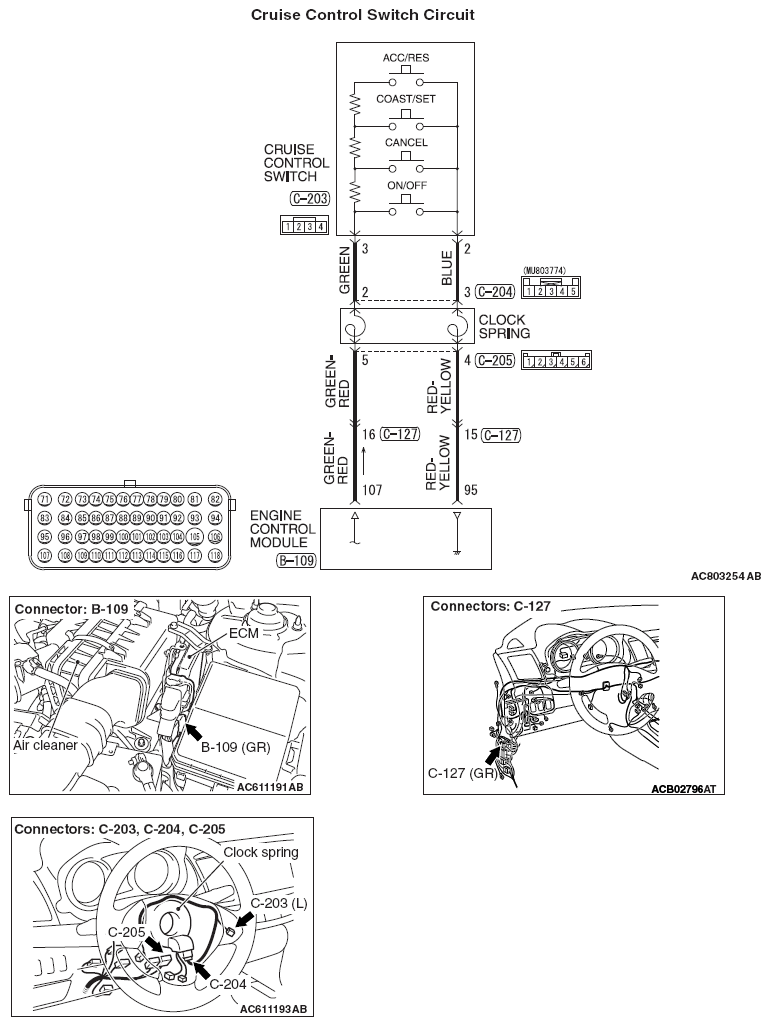

Fig 1: Cruise Control Switch Circuit Diagram

G09625450

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
