Disassembly And Assembly: Notes

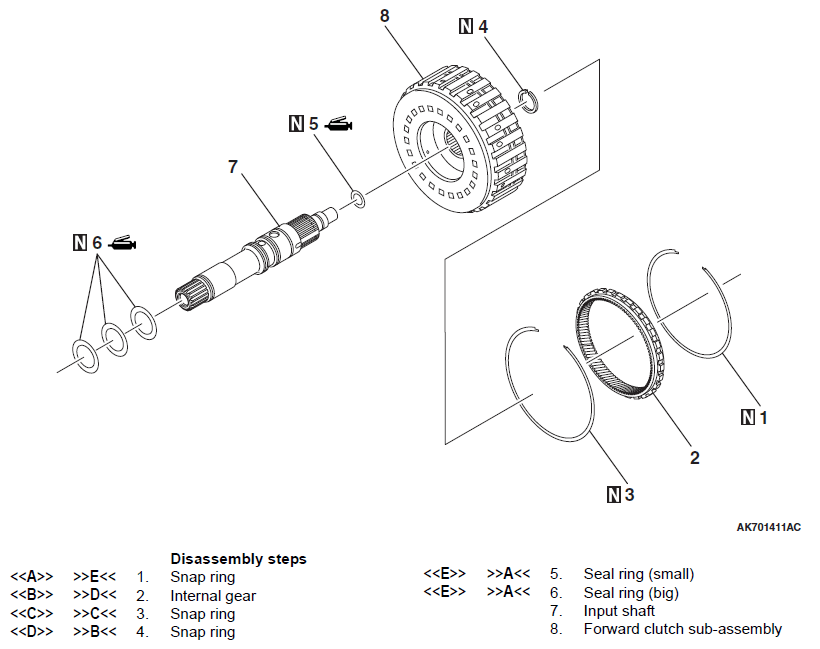

Fig 1: Disassembling/Assembling Forward Clutch Components

G09626402

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
