INSPECTION PROCEDURE 5: DIAGNOSIS MODE Cannot Be Made An Entry - Vehicles With Radio And CD Player: Notes

CAUTION: Before replacing the hands free module, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

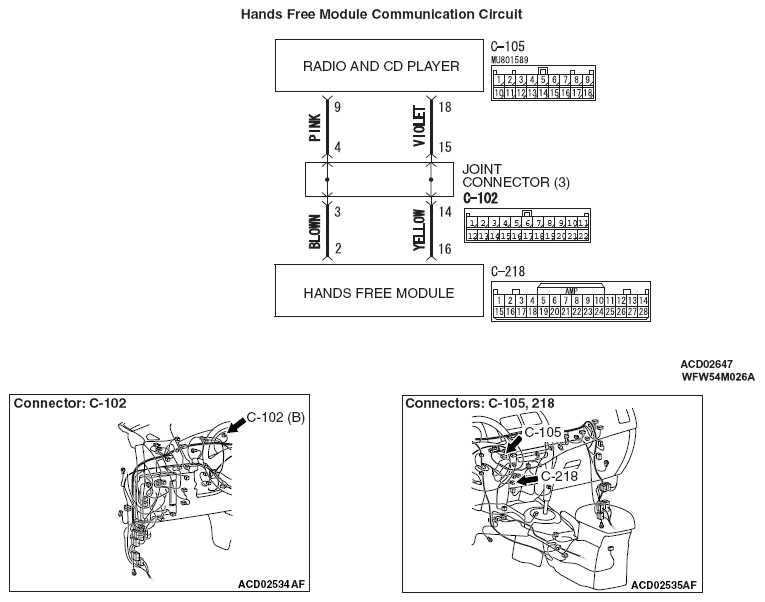

Fig 1: Hands Free Module Communication - Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
