Disassembly And Assembly: Notes

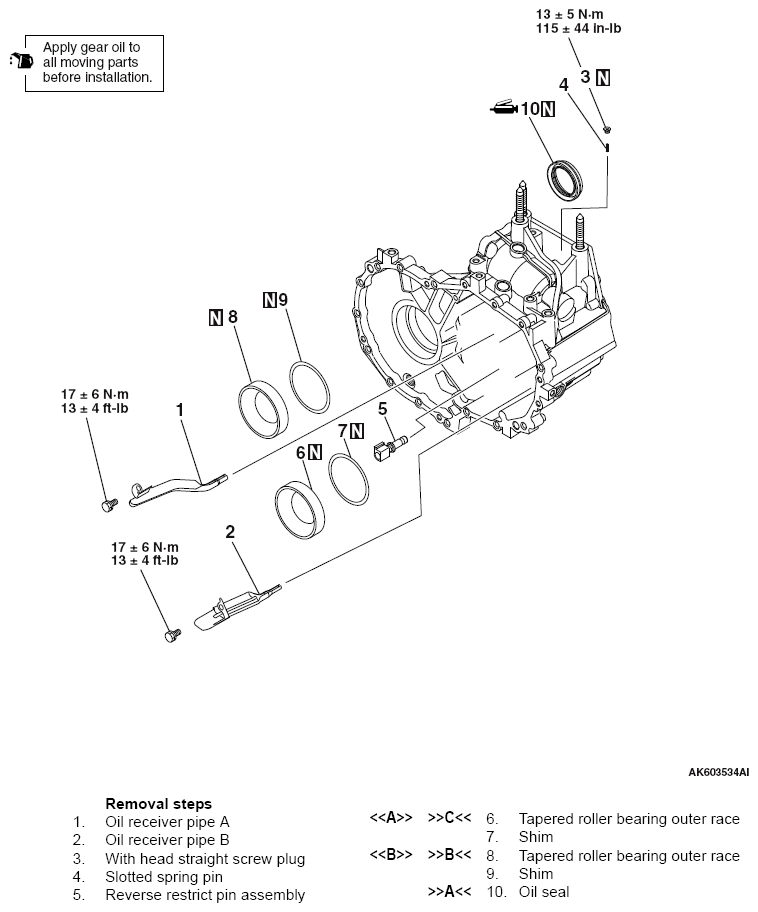

Fig 1: Exploded View Of Transaxle Case With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991015: Knuckle oil seal installer
• MB990211: Slide hammer
• MB992039: Slide hammer puller
• MB992210: Oil seal installer
• MB992075: Handle
• MB991966: Bearing outer race installer
• MB990938: Installer bar
