BELLCRANK Disassembly And Assembly: Notes

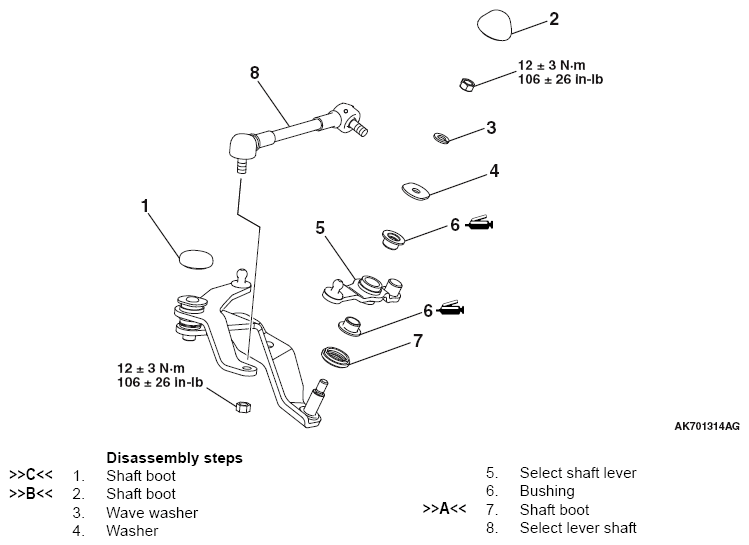

Fig 1: Exploded View Of Bellcrank With Torque Specification

G09669593

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
