INSPECTION PROCEDURE 4: When The Speech Switch Is Pressed, The Voice Information Is Not Output - Vehicles With MMCS: Notes

CAUTION: Before replacing the hands free module, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

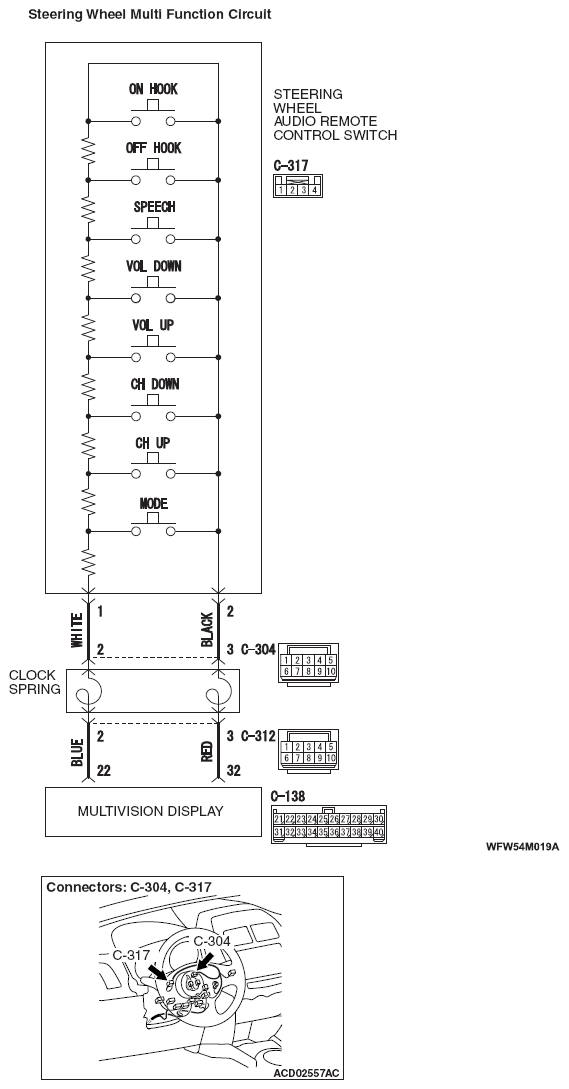

Fig 1: Steering Wheel Multi Function - Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
