Home >> Mitsubishi >> 2014 >> Outlander SE, AWD >> Repair and Diagnosis >> Engine Mechanical >> Intake & Exhaust System >> Intake Manifold >> Removal And Installation - 3.0L Engine >> Notes

Removal And Installation - 3.0L Engine: Notes

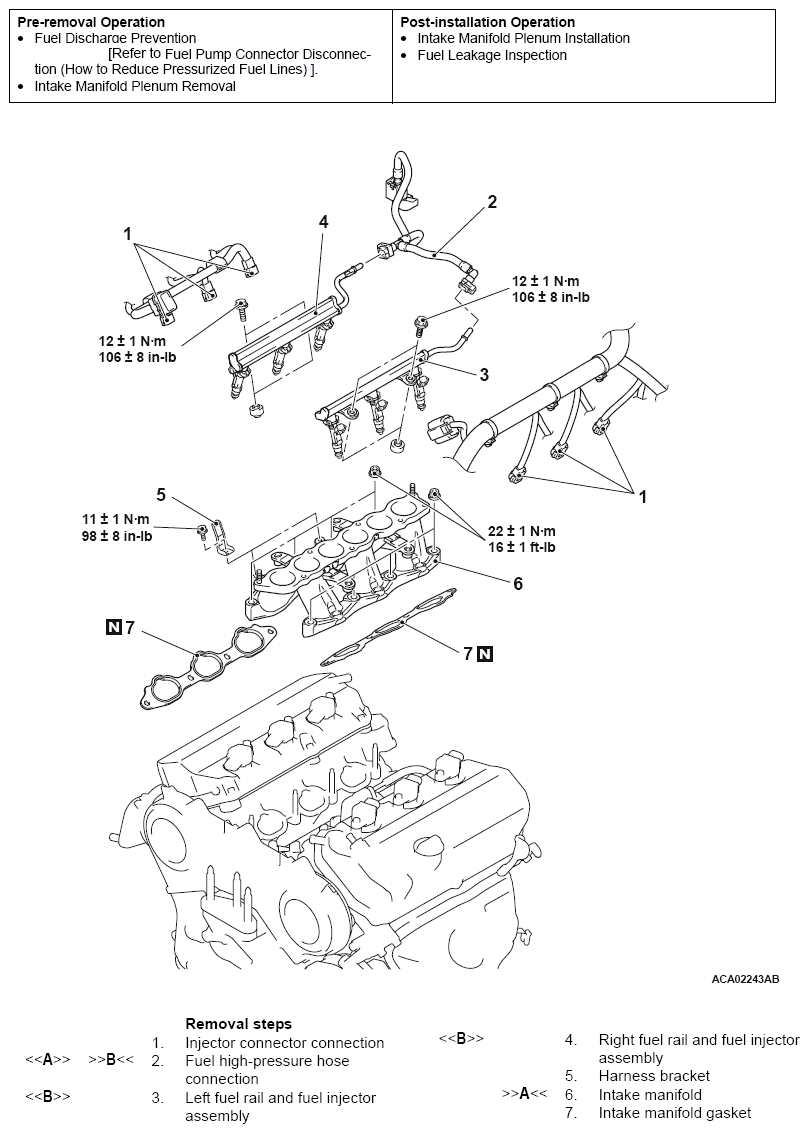

Fig 1: Removing/Installing Intake Manifold With Torque Specification - 3.0L Engine

G09664665

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
