Removal And Installation < Front >: Notes

CAUTION: The vehicle speed detection encoder collects any metallic particle easily, because it is magnetized. Make sure that the encoder should not collect any metallic particle. Check that there is not any trouble prior to reassembling it.

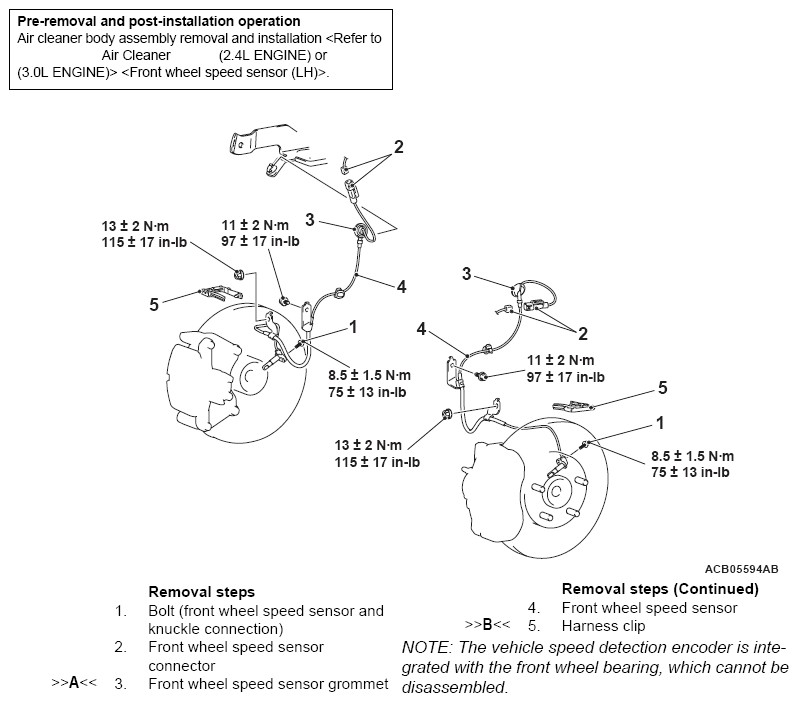

Fig 1: Removing/Installing Wheel Speed Sensor With Torque Specification

NOTE: The vehicle speed detection encoder is integrated with the front wheel bearing, which cannot be disassembled.
