Special Tool

WARNING: This page is about a different variant/trim than selected.

Tool number and name	Supersession	Application
MB990925 Bearing and oil seal installer set MB990939 Remover bar	MB990925-01 or General service tool	Adjustment of door striker

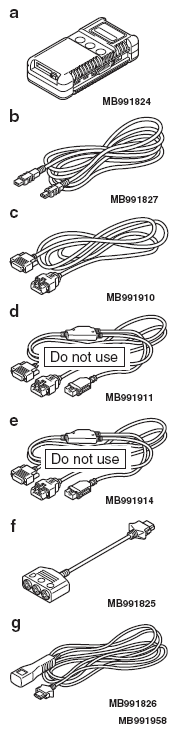

MB991958 MB991824 MB991827 MB991910 MB991911 MB991914 MB991825 MB991826 Scan tool (M.U.T.-III sub assembly) Vehicle communication interface (V.C.I.) M.U.T.-III USB cable M.U.T.-III main harness A (Vehicles with CAN communication system) M.U.T.-III main harness B (Vehicles without CAN communication system) M.U.T.-III main harness C (for Chrysler models only) M.U.T.-III measurement adapter M.U.T.-III trigger harness	MB991824-KIT NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.	CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly. Communication line check (ECU check and service data)
MB991223 Harness set MB991219 Test harness MB991220 LED harness MB991221 LED harness adapter MB991222 Probe	General service tools	Measurement of terminal voltage and resistance Connector pin contact pressure inspection Power circuit inspection Power circuit inspection Commercial tester connection
MB992006 Extra fine probe	-	Measurement of terminal voltage and resistance
