Liftgate Lock Release Handle (Liftgate Open Switch) Check

WARNING: This page is about a different variant/trim than selected.
SWITCH POSITION DESCRIPTION - VEHICLES WITHOUT KOS

Switch position Terminal number Normal value
Push (open) 1 - 2 Continuity exists (2 Ω or less)
Release 1 - 2 No continuity
SWITCH POSITION DESCRIPTION - VEHICLES WITH KOS

Switch position Terminal number Normal value
Push (open) 1 - 2 Continuity exists (2 Ω or less)
Release 1 - 2 No continuity

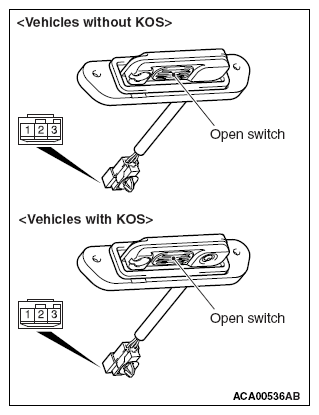

Fig 1: Identifying Liftgate Open Switch Connectors (With And Without KOS)
G09627698Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
