Removal And Installation - 2.0L Engine Non-Turbo, 2.4L Engine: Notes

WARNING: This page is about a different variant/trim than selected.

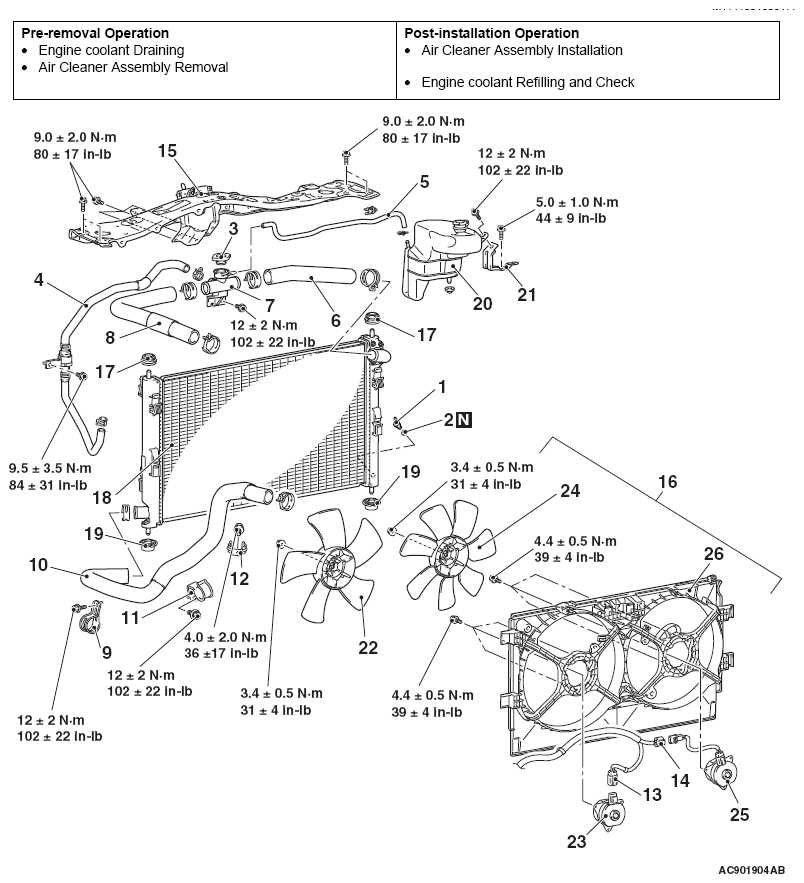

Fig 1: Removing/Installing Radiator Components With Torque Specifications - 2.0L Engine Non-Turbo, 2.4L Engine (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

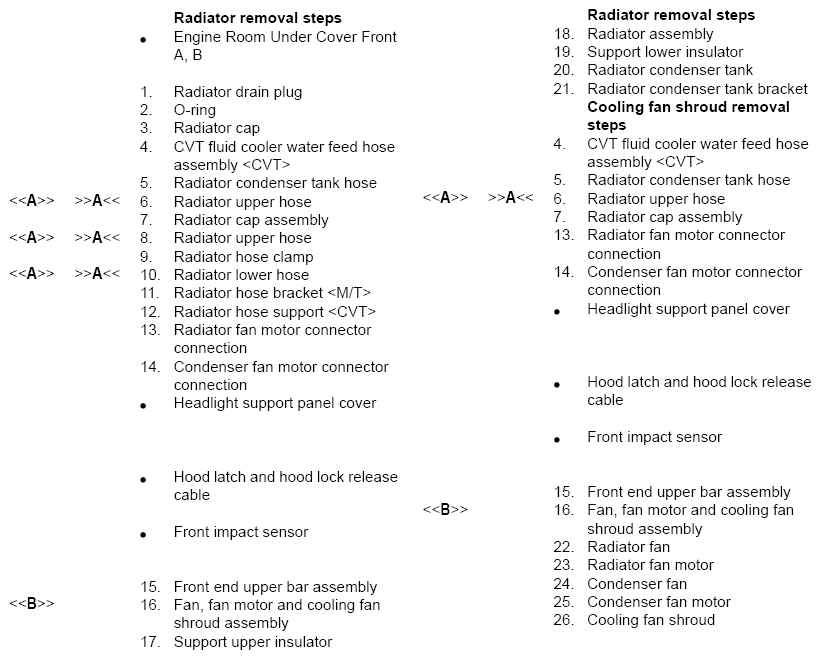

Fig 2: Removing/Installing Radiator Components - 2.0L Engine Non-Turbo, 2.4L Engine (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
