Power Plant Mount - Lancer Evolution
>>
Transaxle (Transmission) Mounting
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

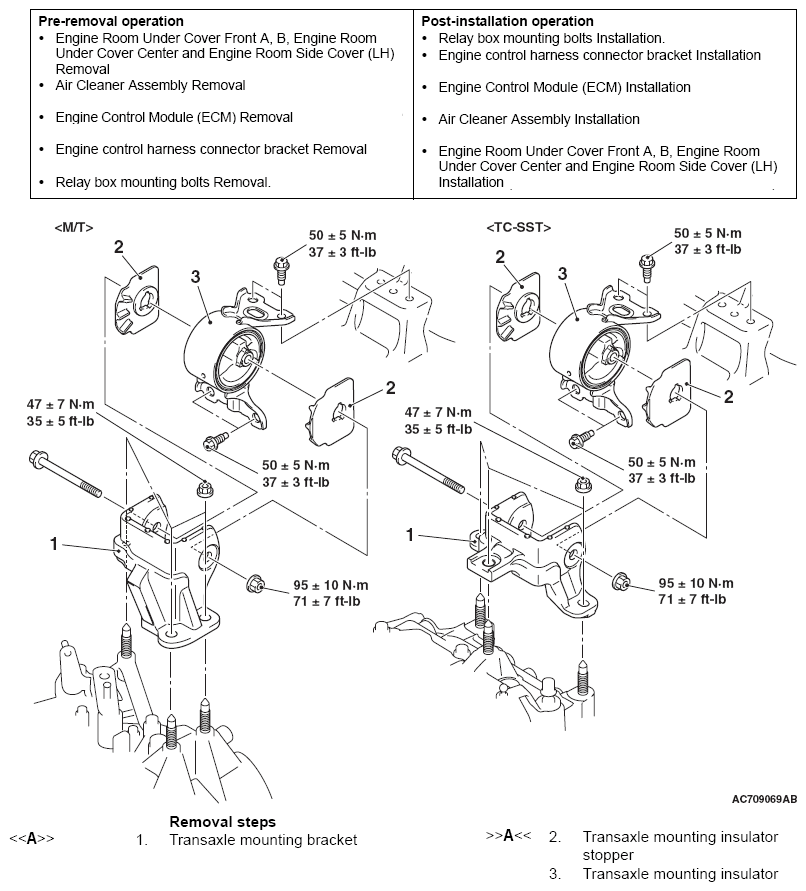

Fig 1: Removing/Installing Transaxle (Transmission) Mounting With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
