Removal And Installation

CAUTION:
  • Do not use an impact wrench.
  • Do not drop or shock the G and yaw rate sensor.
  • When the G and yaw rate sensor is replaced, always carry out calibration to make ASC-ECU learn the neutral point (Refer to G AND YAW RATE SENSOR CALIBRATION  ).

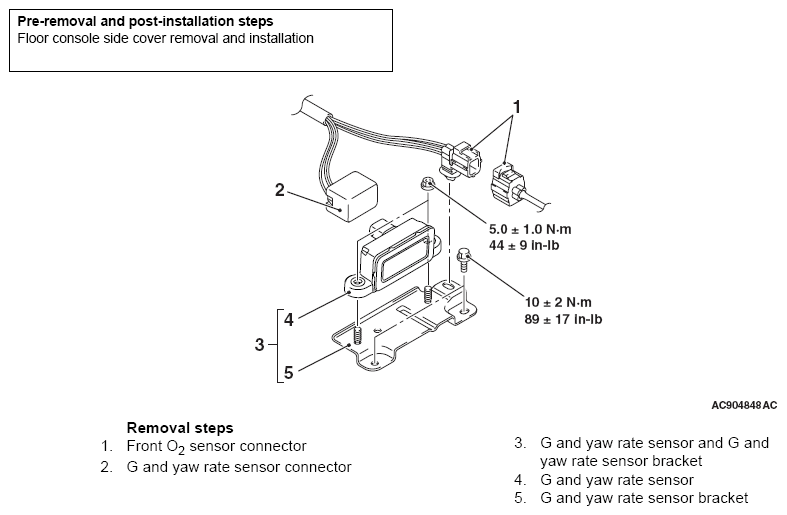

Fig 1: Removing/Installing G And Yaw Rate Sensor With Torque Specifications
G09650923Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
