Removal And Installation: Notes

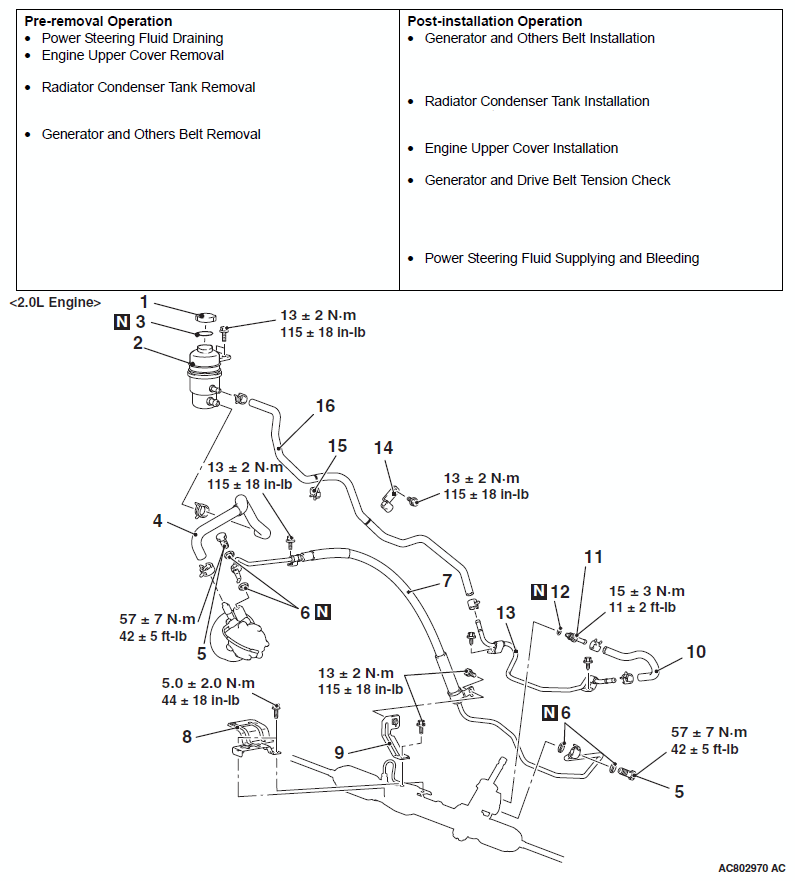

Fig 1: Removing/Installing Power Steering Hoses Components With Torque Specifications (2.0L Engine)
G09627397Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

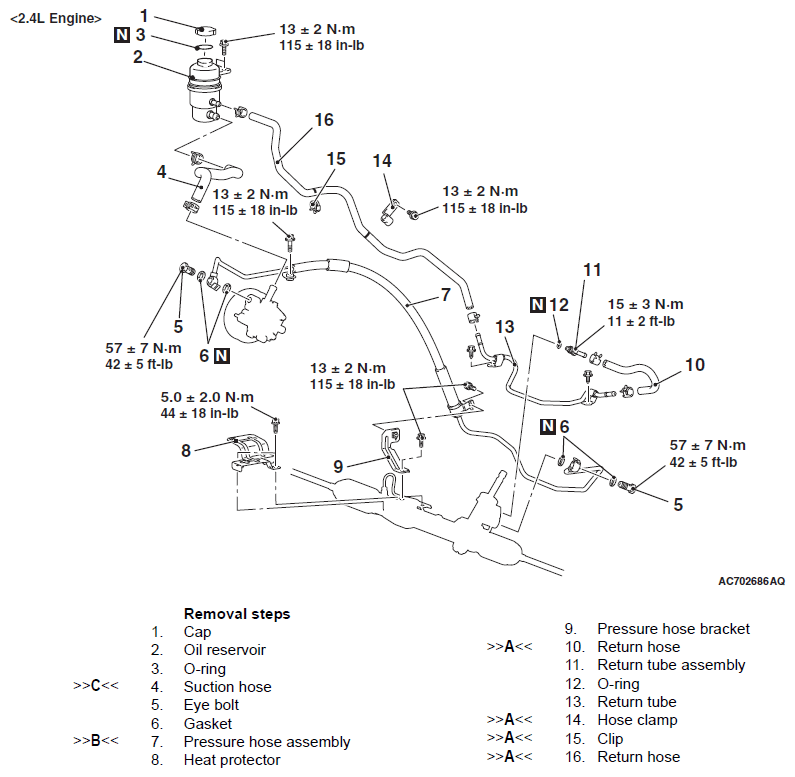

Fig 2: Removing/Installing Power Steering Hoses Components With Torque Specifications (2.4L Engine)
G09627398Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
