ECM Reprogramming For False Mil Illumination With DTC P2097 - Revised (TSB-15-13-002)

Publication date: 2015-03-01
Reference number: TSB-15-13-002
Supersedes refnos: TSB-14-13-003

ECM REPROGRAMMING FOR FALSE MIL ILLUMINATION WITH DTC P2097 - REVISED

ECM REPROGRAMMING FOR FALSE MIL ILLUMINATION WITH DTC P2097 - REVISED

TECHNICAL SERVICE BULLETIN

Reference Number(s): TSB-15-13-002, Date of Issue:  March, 2015
MITSUBISHI: 2011 - 2014 Lancer/Lancer Sportback, Outlander Sport/RVR; 2011 - 2013 Outlander
Superceded Bulletin(s): TSB-14-13-003, Date of Issue:  July, 2014

REVISION HISTORY

This bulletin supersedes TSB-14-13-003, issued July, 2014 to expand the Affected Vehicles to include additional models. For affected 2011 - 2013 models, linear air-fuel sensor (LAFS) replacement is required. Revisions are not indicated as this bulletin has been completely re-written.

PURPOSE

This TSB provides a field fix procedure to address false MIL illumination with DTC P2097 (Rear Oxygen Sensor Feedback Control System Monitoring) stored in the ECM. To minimize false MIL illumination, this software update optimizes the target A/F ratio adjustment condition when the accelerator pedal is depressed and released suddenly. For affected 2011 - 2013 models, the linear air-fuel sensor (LAFS) must also be replaced.

BACKGROUND

During rear oxygen sensor feedback control system monitoring, if the accelerator pedal is depressed and released suddenly, it may cause false MIL illumination due to an improper target A/F ratio adjustment setting.

AFFECTED VEHICLES

2011 - 2014 Lancer/Lancer Sportback equipped with 4B11 (2.0L) or 4B12 (2.4L) engine (non-turbo) - built before the end of May, 2014

2011 - 2013 Outlander equipped with 4B12 (2.4L) engine

2011 - 2014 Outlander Sport/RVR equipped with 4B11 (2.0L) engine

REQUIRED OPERATIONS

OVERVIEW

  1. Confirm your MUT-III is updated with the latest reprogramming database.
  2. For affected 2011 - 2013 models, replace the linear air-fuel sensor.
  3. Diagnose (and repair if necessary) the failure condition using the applicable service manual.
  4. Reprogram the ECM with the new software. Refer to the ECM REPROGRAMMING CHART  for new software information.
    IMPORTANT: If an affected vehicle has a Malfunction Indicator Lamp (MIL) illuminated before reprogramming  , and DTCs other than described above are listed in ECM memory, diagnose and repair those DTCs per the applicable service manual before reprogramming. DO NOT  reprogram the ECM until the reason(s) for other DTCs being set is corrected.

EQUIPMENT

The following equipment is needed to reprogram the ECM.

  • VCI (Vehicle Communication Interface) or VCI Lite - MB991824 or MB992744.
  • MEDIC Laptop/Tablet with A/C power adapter - 520924, or FZG1MK2.
  • MUT-III main harness 'A' (blue connector at the DLC end) - MB991910 or MB992745.
  • USB 2.0 cable - MB991827 or MB992747.
  • "Engine Compartment/Control Module" label - p/n MSSF024G00.
  • MEDIC 3/4 update at M321 or higher.
  • For Standalone MUT-III units, MUT-III Reprogramming Database N15021 or higher.

ECM REPROGRAMMING CHART

Database No. 15021

MODEL CURRENT PART NO. DATA NO. DISPLAY ON MUT-III AFTER REPROGRAMMING
New Part No. New S/W Part #
11 Outlander Sport/RVR 4B11 D4 MT1860B665 1862B951 1860B665 1860B66505
11 Outlander Sport/RVR 4B11 D4 CVT 1860B638 1862B952 1860B638 1860B63806
11 Lancer/Lancer Sportback 4B11 D4 MT 1860B364 1862B953 1860B364 1860B36406
11 Lancer/Lancer Sportback 4B11 D4 CVT 1860B365 1862B954 1860B365 1860B36507
11 Lancer/Lancer Sportback 4B12 D4 MT 1860B458 1862B955 1860B458 1860B45804
11 Lancer/Lancer Sportback 4B12 D4 CVT 1860B459 1862B956 1860B459 1860B45904
11 Outlander 4B12 D4 CVT 1860B461 1862B957 1860B461 1860B46104
12 Outlander Sport/RVR 4B11 D4 MT 1860B744 1862B958 1860B744 1860B74402
12 Outlander Sport/RVR 4B11 D4 CVT 1860B745 1862B959 1860B745 1860B74503
12 Lancer/Lancer Sportback 4B11 D4 MT 1860B730 1862B960 1860B730 1860B73002
12 Lancer/Lancer Sportback 4B11 D4 CVT 1860B731 1862B961 1860B731 1860B73103
12 Lancer/Lancer Sportback 4B12 D4 MT 1860B734 1862B962 1860B734 1860B73402
12 Lancer/Lancer Sportback 4B12 D4 CVT 1860B735 1862B963 1860B735 1860B73502
12 Outlander 4B12 D4 CVT 1860B715 1862B964 1860B715 1860B71503
13 Outlander Sport/RVR 4B11 D4 MT 1860C037 1862B965 1860C037 1860C03702
13 Outlander Sport/RVR 4B11 D4 CVT 1860C038 1862B966 1860C038 1860C03803
13 Outlander 4B12 D4 CVT 1860C041 1862B967 1860C041 1860C04102
13-14 Lancer/Lancer Sportback 4B11 D4 MT 1860C035 1862B968 1860C035 1860C03502
13-14 Lancer/Lancer Sportback 4B11 D4 CVT 1860C036 1862B969 1860C036 1860C03603
13-14 Lancer/Lancer Sportback 4B12 D4 MT 1860C039 1862B970 1860C039 1860C03902
13-14 Lancer/Lancer Sportback 4B12 D4 CVT 1860C040 1862B971 1860C040 1860C04002
14 Outlander Sport/RVR 4B11 D4 MT 1860C297 1862B931 1860C297 1860C29701
14 Outlander Sport/RVR 4B11 D4 CVT 1860C298 1862B932 1860C298 1860C29801

REPAIR PROCEDURE

NOTE: Reprogramming the ECM using the latest database (i.e. N15021) includes all past and current reprogramming for TSBs of affected vehicles. It is not necessary to reprogram the ECM for each previous TSB.
  1. Check the underside of the hood to verify there is no "Authorized Modification" label (see page 11 for example) previously installed to indicate this reprogramming has already been completed. If a label is present and the "ROM ID #" on the label matches the "New S/W Part No." in the table above, the ECM is at the latest level and reprogramming is not necessary. Conduct normal diagnosis for the described condition.
  2. If the affected vehicle is a 2011 - 2013 model, replace the linear air-fuel sensor. Refer to the applicable service manual, Group 15: Intake and Exhaust > Exhaust Pipe and Main Muffler (2.0L Engine Non-turbo, 2.4L Engine) > Removal and Installation.
  3. Before beginning this reprogramming procedure, disconnect the negative (-) battery terminal for 60 seconds or more to erase the learned value. Then reconnect it.

    For MEDIC 3/4 users only: (MUT-III users go to step   5 )

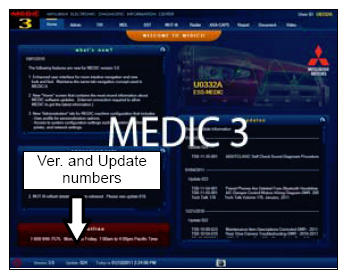

  4. Verify the MEDIC 3/4 is at version 3.2 and at update 321  or higher.

    If your MEDIC 3 update is at least 321  , continue with the REPROGRAMMING PROCEDURE  .

    If your MEDIC 3 update is below 321  , update your MEDIC 3/4 as follows.

    G09911082

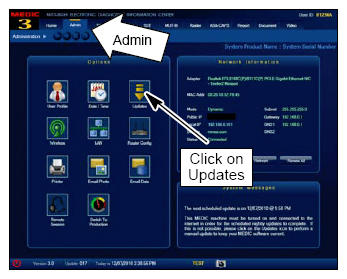

  5. Select the MEDIC 3/4 Admin tab and click on "Updates."
    G09911083

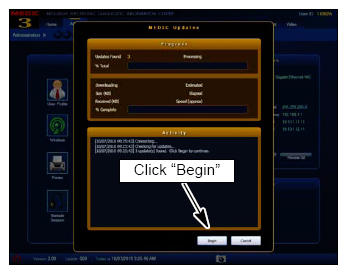

  6. IF the MEDIC update screen advises updates are available, click the "Begin" button. After all updates are complete, GO TO THE REPROGRAMMING PROCEDURE  .
    G09911084
  7. STANDALONE MUT-III SCAN TOOL VIEWER (STV) ONLY: (MEDIC 3/4 USERS GO TO THE REPROGRAMMING PROCEDURE  ). Verify that your MUT-III has the most current version of the reprogramming database:
    1. From the MUT-III Main Page:
      • Select "Special Function"
      • Select "ECU Reprogramming"
      • Select: Database File Display-CAN"

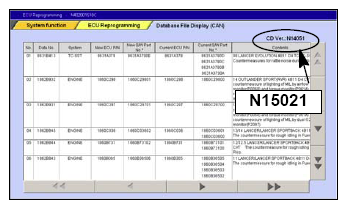

      • Confirm the database number displayed at the top right of the chart is N15021 or higher
        1. If the database number displayed on your MUT-III is N15021  or greater, continue to the REPROGRAMMING PROCEDURE  .
        2. If the reprogramming database number displayed on your MUT-III is lower than N15021,  locate the reprogramming CD containing database N15021  and follow the instructions provided with the CD to update your MUT-III.
          G09911085

REPROGRAMMING PROCEDURE

CAUTION: CONNECT A BATTERY CHARGER TO THE VEHICLE'S BATTERY DURING THE REPROGRAMMING PROCEDURE. DO NOT ALLOW THE BATTERY CHARGER TO TIME OUT. BATTERY VOLTAGE (AS MEASURED AT THE BATTERY POSTS WITHOUT ELECTRICAL LOAD) MUST BE KEPT AT 12.4V OR HIGHER IN ORDER TO REPROGRAM THE ECM. MEASURE THE BATTERY VOLTAGE AND CHARGE AS NECESSARY.
NOTE: VCI Stand-alone reprogramming is not available for this procedure. The laptop and the VCI must remain connected for the entire procedure.

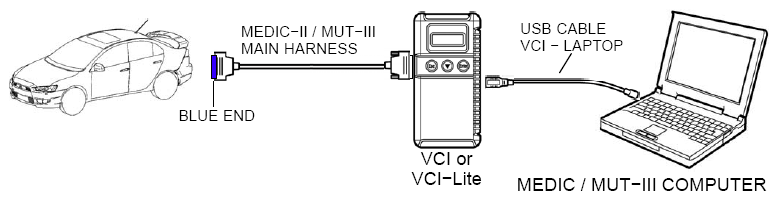

Connect the equipment as follows:

G09911086

ECU Reprogramming

CAUTION: DO NOT DISTURB THE HARNESS CABLES OR CONNECTIONS DURING THE REPROGRAMMING PROCESS AS IT COULD CAUSE THE CONTROL UNIT TO LOSE DATA OR PREVENT FUTURE REPROGRAMMING. IF THE USB CABLE IS DISCONNECTED DURING THIS PROCEDURE, A WARNING MESSAGE WILL DISPLAY.
  1. Conduct the following steps to reprogram the ECM.
    1. Turn the ignition switch to the ON position. If the vehicle is equipped with the F.A.S.T. System, the transmitter must remain in the vehicle for the entire procedure.

      For vehicles equipped with OSS, press the START/STOP button twice without applying the brake. The LED in the button should be green.

    2. If using MEDIC, from the main page, click the MUT-III STV icon at the top center of the screen to open MUT-III.

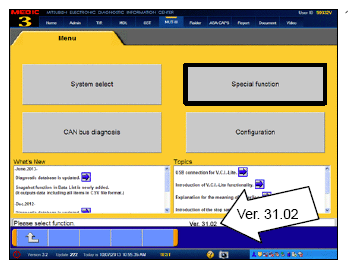

    3. From the MUT-III Main Menu, select "Special Function."
      G09911087

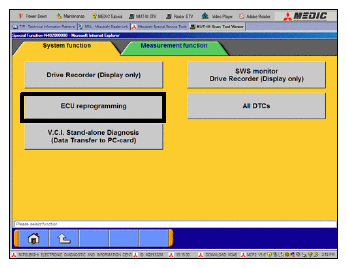

    4. Select "ECU Reprogramming."
      G09911088

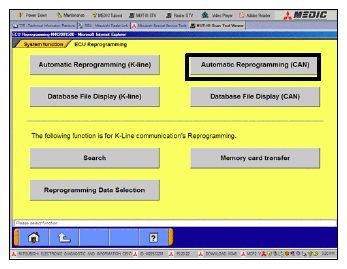

    5. Select "Automatic Reprogramming (CAN)."
      G09911089

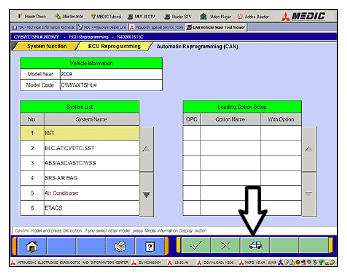

    6. Click the car icon at the bottom of the page.
      G09911090

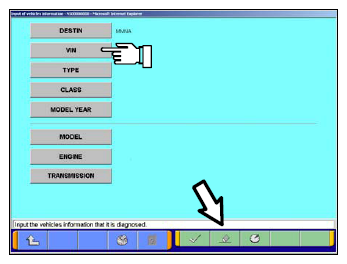

    7. If the VIN or vehicle description displayed does not match the vehicle you are working on, click the eraser icon at the bottom of the page to erase vehicle data.

      Then click the VIN button.

      G09911091
    8. Click the icon in the lower RH corner of the screen to have MUT-III automatically read the VIN.

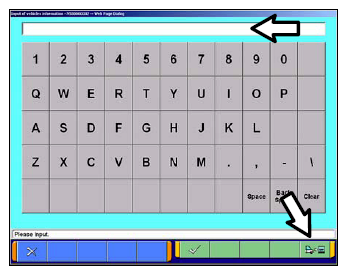

      If a message appears saying the VIN cannot be input automatically, manually enter the 17 digit VIN into the VIN field at the top of the page.

      Make sure the VIN is correct and click the check mark.

      G09911092

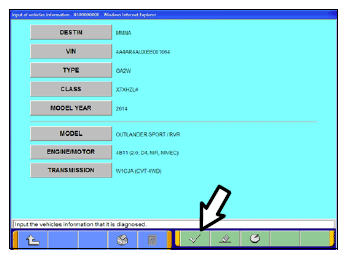

    9. Confirm all data matches the vehicle and click the check mark at the bottom of the page.
      G09911093

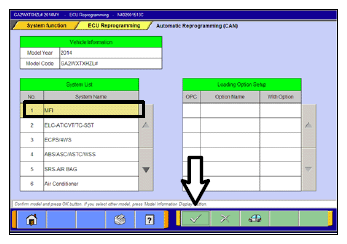

    10. MFI should be highlighted as the default. If not, click it to highlight it.

      Click the check mark at the bottom of the page.

      G09911094

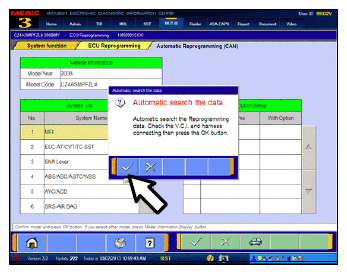

    11. A message will advise the system will "Automatic search the data."

      Click the check mark to continue.

      G09911095

      ECM TO LATEST VERSION

      If a "Complete Reprogramming" message does not  appear, continue with step l.

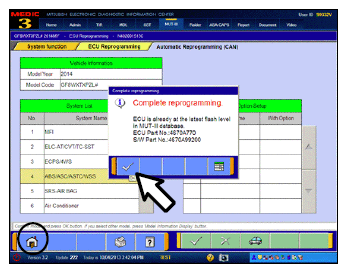

      If the message seen at left is displayed, the ECM software is already at the most current level. Do not continue with the REPROGRAMMING PROCEDURE . This TSB does not apply.

      Click the check mark to clear the window, then click the Home icon at the lower left corner of the screen to return to the System Select main page.

      Turn the ignition switch to the OFF position and disconnect the MUT-III. Turn off and disconnect the battery charger. Conduct normal diagnosis per the service manual.

      G09911096

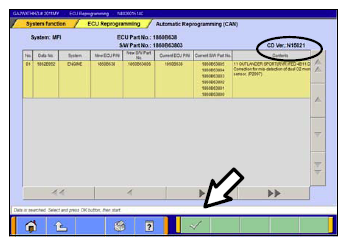

    12. The Automatic Reprogramming (CAN) database screen will display.

      Confirm the database number at the top right of the table is N15021  or higher.

      If more than one row is displayed in the table, refer to the ECM REPROGRAMMING CHART  to select the correct row.

      Click on the row to highlight it.

      Click the check mark to continue.

      G09911097

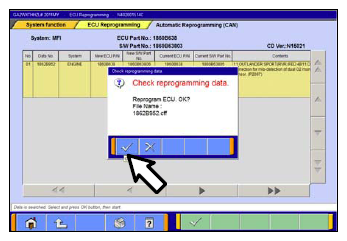

    13. A message will ask you to "Check reprogramming data."
    14. Click the check mark to begin reprogramming. Reprogramming will take up to 5 minutes to complete.
      G09911098

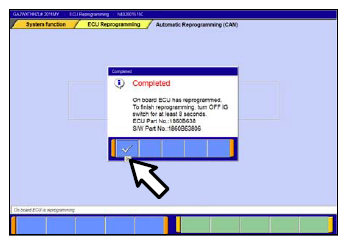

    15. This message will display when ECM reprogramming is successfully completed. Confirm the "New S/W P/N" displayed matches the table at the beginning of this TSB. Then click the check mark to clear the message.
    16. Turn the ignition switch off, wait 8 seconds, then turn the ignition switch on.

      For vehicles equipped with OSS, press the START/STOP button once without applying the brake to turn the vehicle off. The LED in the button should be red. Wait for 8 seconds, then press the START/STOP button twice without applying the brake. The LED in the button should be green.

      G09911099
  2. Click the UP arrow at the lower left corner of the page to return to the System Function page.
  3. Using MUT-III, check and erase ALL DTCs from all systems as follows.

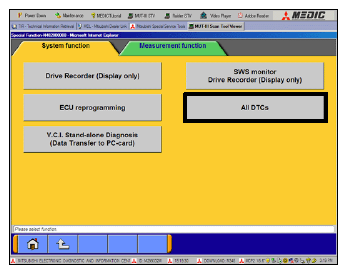

    1. Select "Special Function."

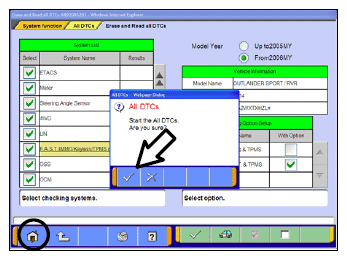

    2. Select "All DTCs," then select "ERASE AND READ ALL DTCS."
      G09911100
    3. The "System List" on the left side of the screen will have all selections checked. Do not  change these selections. DTCs may be set if the vehicle is equipped with options that are unchecked.
    4. If the check mark at the bottom of the screen is highlighted, click it and move ahead to step 4. If not, continue with sub-step e.
      G09911101

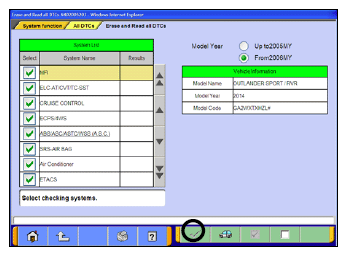

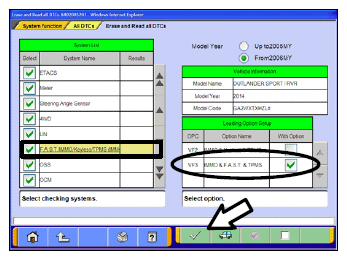

    5. In the left column, scroll to and click FAST/IMMOB/KEYLESS/TPMS. In the right column, check the correct option code (VF#) from the Loading Options Setup list. This will activate the check mark at the bottom of the page.
      • Vehicles with regular keyless entry (buttons on a multi-function key), select VF2.
      • Vehicles with F.A.S.T. Key, select VF3.
      1. d. If the check mark at the bottom of the screen is highlighted, click it and move ahead to step 4. If not, continue with sub-step f.
    6. In the left column, scroll to and select METER. A chart will display. Check the correct display type for the vehicle.
      G09911102

      Click the check mark to continue.

  4. A window will pop up asking you to confirm DTC erasing. Click the check mark for DTC erasing and reading to begin.
  5. When DTC erasing is completed, a window will display.
    1. If DTCs return after reprogramming, click the check mark to clear the window. Diagnose and repair per the Service Manual.
    2. If DTCs do not return, click the check mark to clear the window, then click the home icon at the lower left of the screen to return to the main menu.
  6. Turn off the ignition switch and disconnect the MUT-III. Turn off and disconnect the battery charger.
    G09911103
  7. Using a ball-point pen, enter the appropriate Engine Control Module (ECM) part number, Software Part Number (ROM ID#), this Technical Service Bulletin number (TSB-15-13-002)  , your dealer code, and the current date on the Engine Compartment / Control Module Label (p/n MSSF024G00). The Vendor Code is not applicable. The label is available from your facing PDC.
    G09911104

    The Control Module Label is NOT used for this reflash. It should be discarded.

  8. Carefully remove all dirt and oil from a vacant area near the VECI label on the underside of the hood and affix the Engine Compartment Label (LH side, above) to that area.
  9. Test drive the vehicle to confirm proper operation and the MIL does not illuminate. Diagnose and correct any DTCs that return.

PARTS INFORMATION

Use only the Genuine Mitsubishi Parts listed below.

Description Model Part Number Quantity
Label, Engine Compartment All MSSF024G00 1
Linear Air-Fuel Sensor 2011-13 Lancer / Lancer Sportback, Outlander, Outlander Sport/RVR 1588A228 1

WARRANTY INFORMATION

This bulletin is supplied as technical information only and is not an authorization to repair. If an affected vehicle is reported with the described condition, diagnose the condition, repair as described in this bulletin and submit a normal warranty claim using the following information.

Submit as Warranty Claim Type 'W'

  1. ECM Reprogramming for DTC P2097 (select this operation as the primary operation)

    Nature Code: 16C

    Cause Code: 490

    Labor Operation No.:  138501 13

    Time Allowance:  0.3 hr.

    Warranty Coverage:  Emissions Coverage - Refer to the Superscreen for individual vehicle warranty coverage terms.

  2. Linear Air/Fuel Sensor Replacement (2011-2013 Models Only) (enter on the second line of the claim)

    Enter this operation on the second line of the same claim.

    Labor Operation No.:  138521 10

    Time Allowance:  0.5 hr.

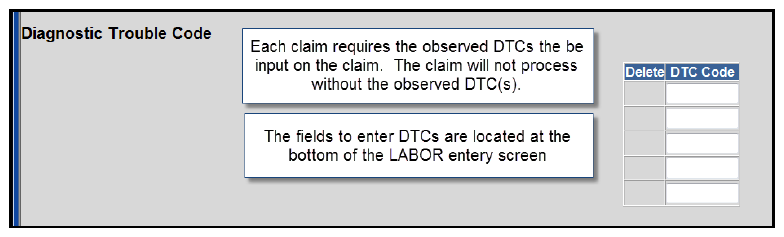

Required DTC Codes

G09911105
