DTC U0231: Lighting control sensor LIN timeout < Vehicles with auto light function >: Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before replacing the ECU, ensure that the communication circuit is normal.

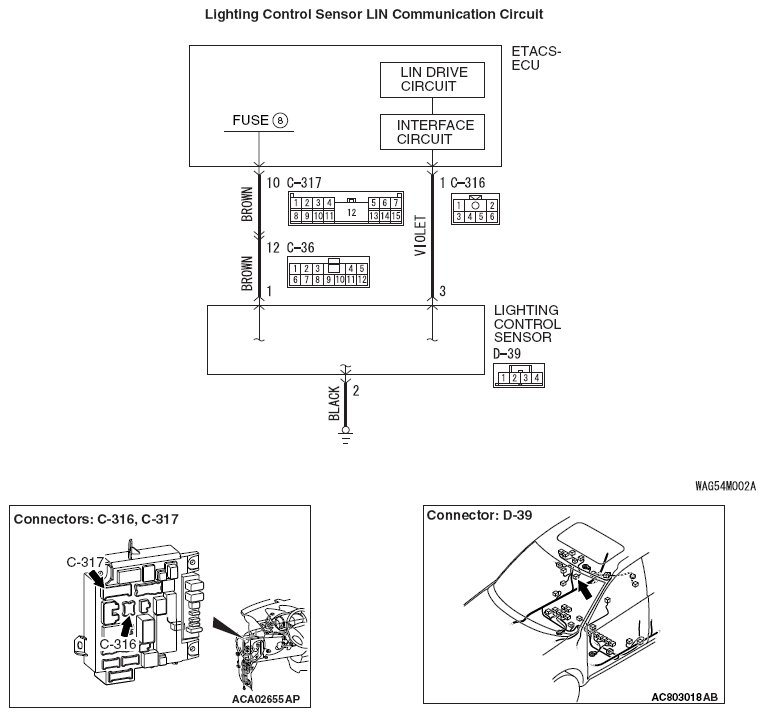

Fig 1: Lighting Control Sensor LIN Communication Circuit Diagram
G07044723Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
