Registration flow chart

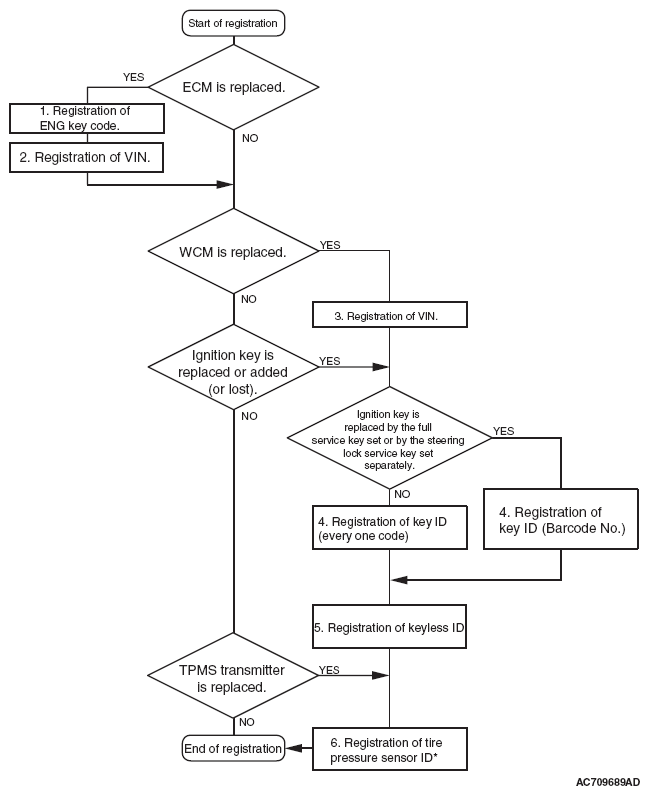

Fig 1: Registration Flow Chart

G07042700

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
