Removal And Installation - 2.0L Engine Turbo: Notes

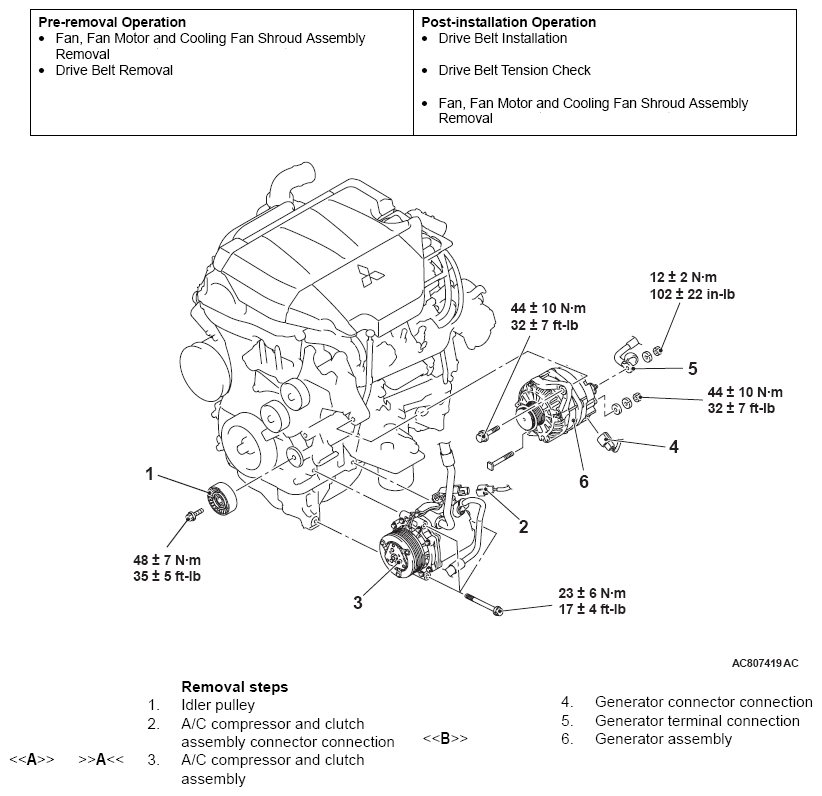

Fig 1: Generator Assembly Components With Torque Specifications (2.0L Engine Turbo)

G08290670

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
