General Information: Schematic

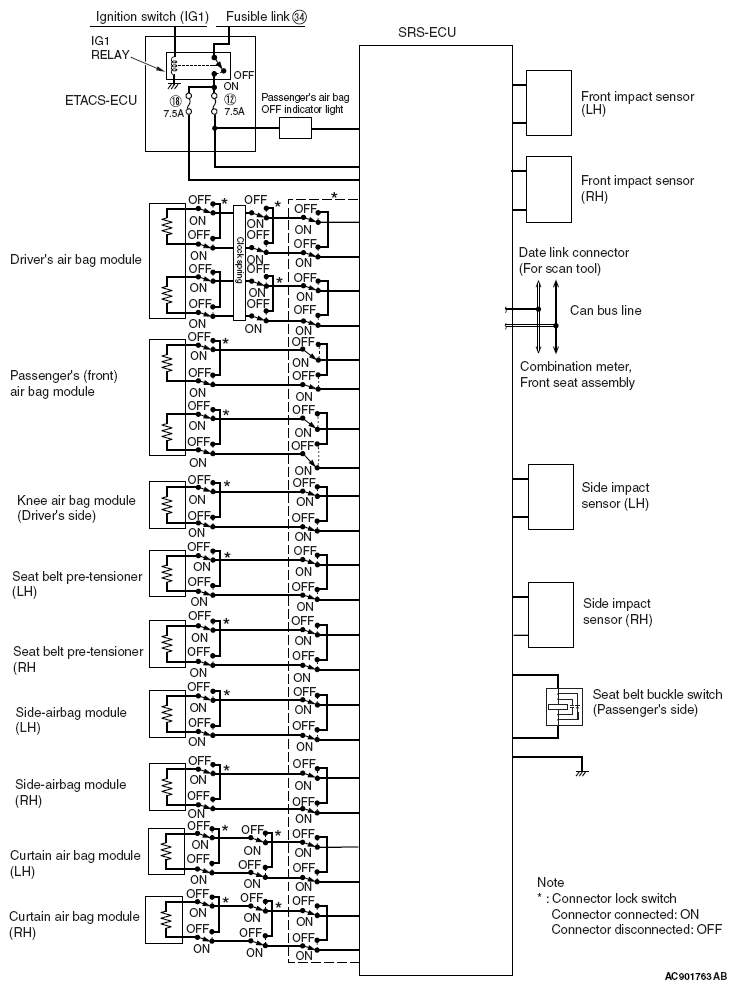

Fig 1: Supplemental Restraint System Schematic Diagram

G06675871

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
