How To Read Data List

CAUTION: To prevent damage to scan tool MB991958, always turn the electric motor switch to the LOCK (OFF) position before connecting or disconnecting scan tool MB991958.
  1. Connect scan tool MB991958 to the data link connector.
  2. Turn the electric motor switch to the "ON" position.
  3. Select "System Select."
  4. Select "ABS/ASC/ASTC" from the system list, and select the "OK" button.
  5. Select "Data List."

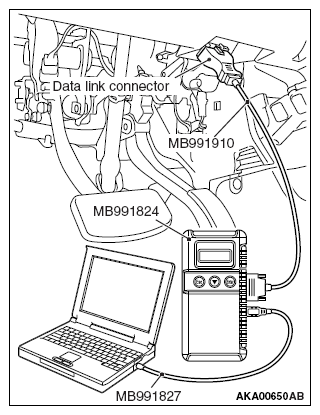

    Fig 1: Connecting Special Tool To Data Link Connector
    G08297764Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
