BELLCRANK Disassembly And Assembly: Notes

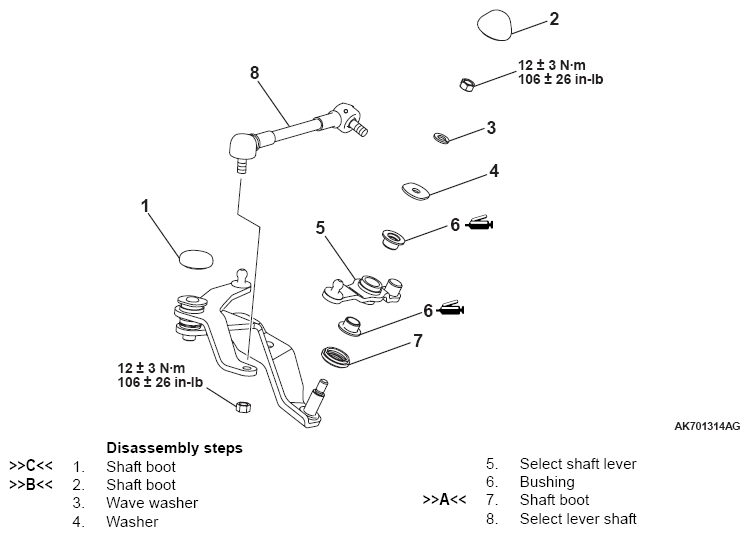

Fig 1: Bellcrank Disassembly/Assembly Replacement Components With Torque Specifications

G07047563

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
