Home >> Mitsubishi >> 2012 >> Outlander ES >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Power Plant Mount >> Transaxle Mounting >> Removal And Installation < 3.0L Engine > >> Notes

Removal And Installation < 3.0L Engine >: Notes

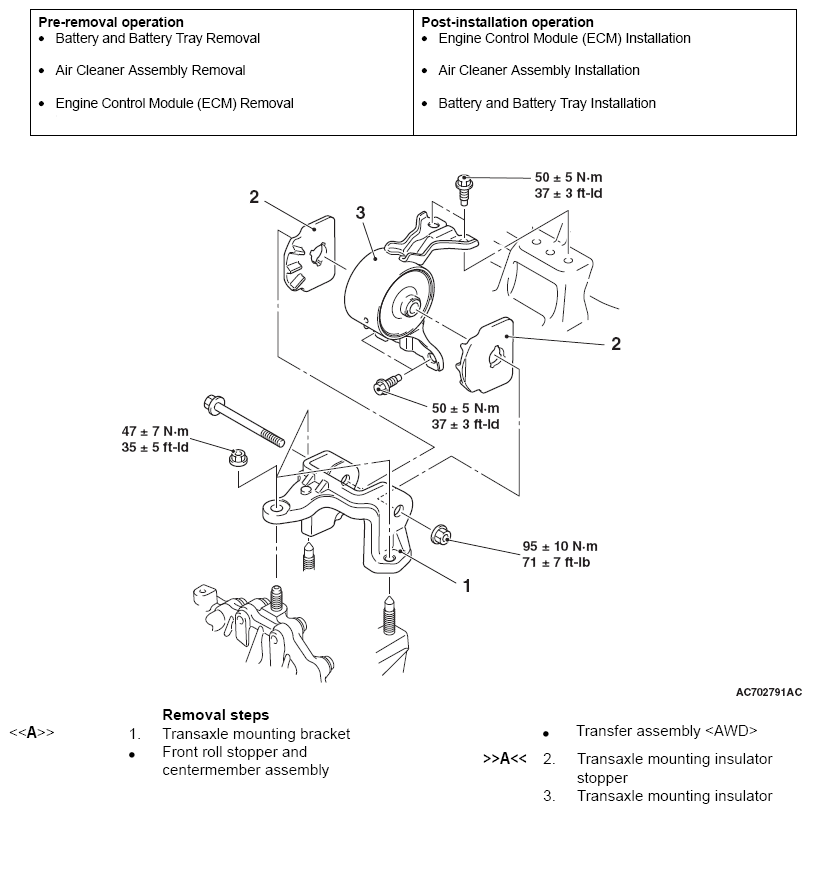

Fig 1: Transaxle Mounting Removal And Installation With Torque Specifications - 3.0L Engine
G07041706Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
