Removal And Installation < 2.4L Engine >: Notes

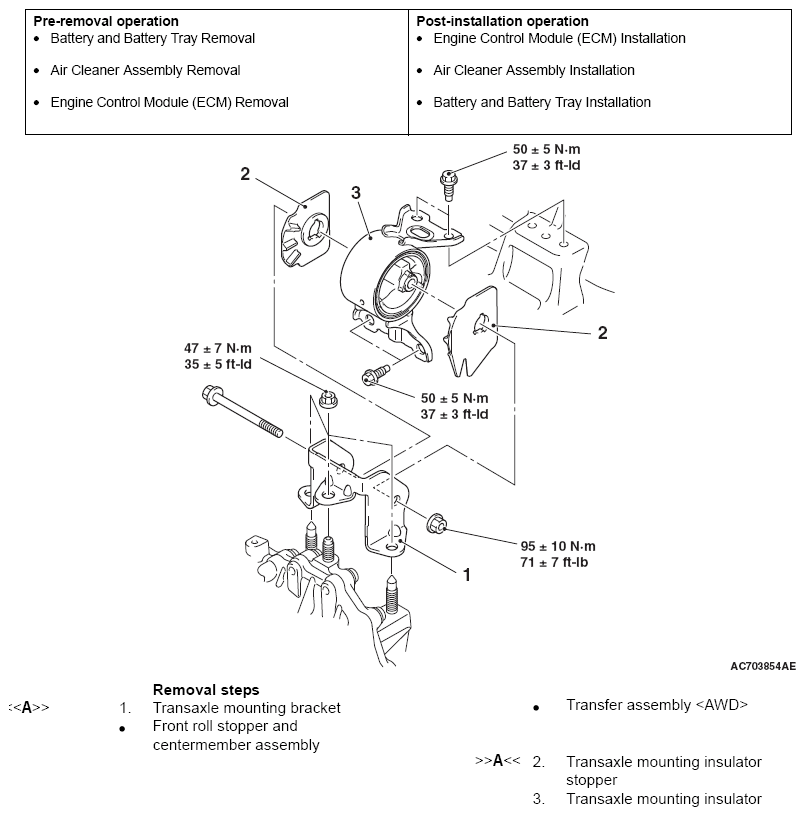

Fig 1: Transaxle Mounting Removal And Installation With Torque Specifications - 2.4L Engine

G07041704

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
