Fuel Pump Module

NOTE: For installation and removal, refer to Fuel Pump Module Replacement in On-vehicle Service (refer to FUEL PUMP MODULE REPLACEMENT < 2.4L ENGINE (AWD) >  ).

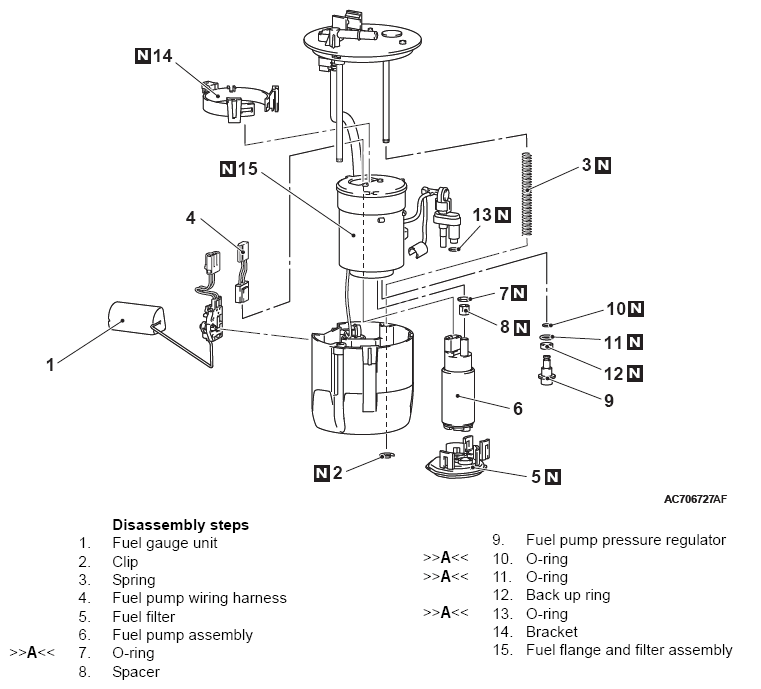

Fig 1: Exploded View Of Fuel Pump Module
G08290515Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
