Removal And Installation

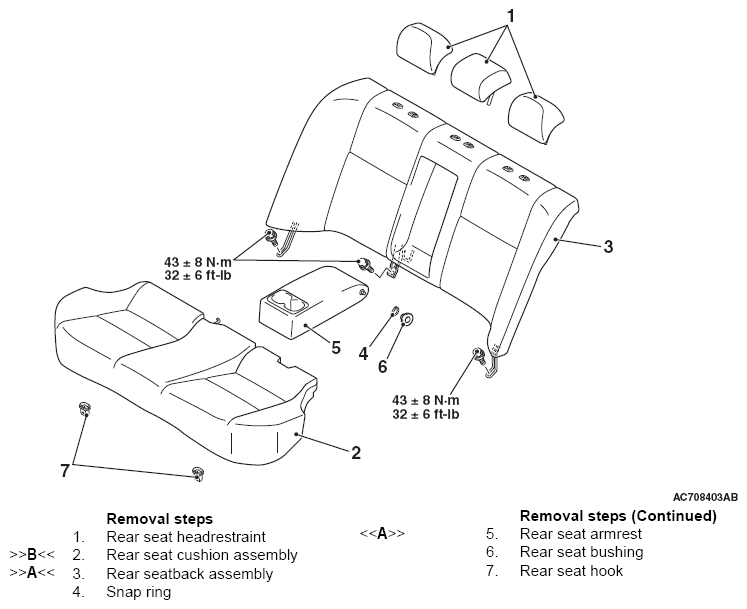

Fig 1: Rear Seat Assembly Components With Torque Specifications

G06678001

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
