Tire Pressure Monitoring System (TPMS) - TC-SST

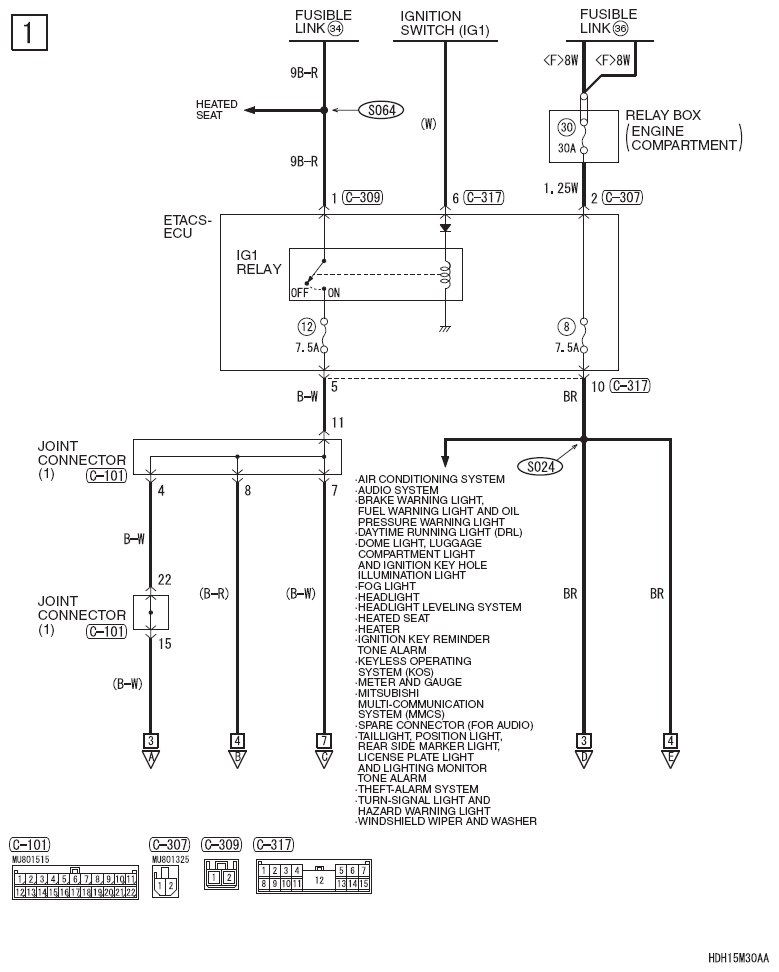

Fig 1: Tire Pressure Monitoring System Circuit Diagram - TC-SST (1 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

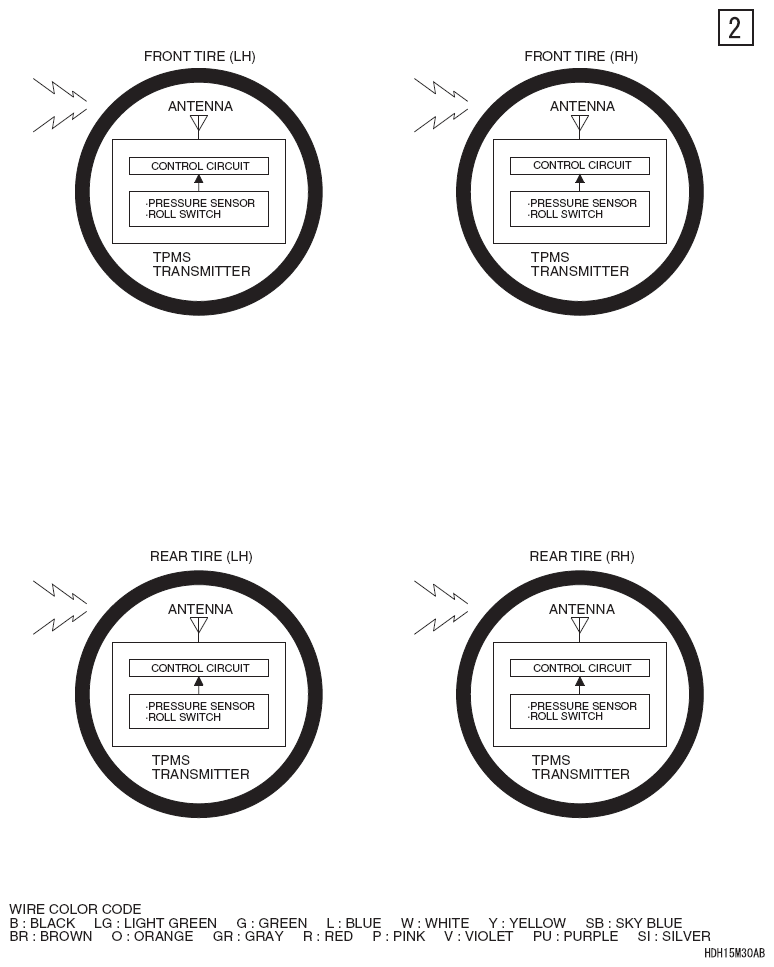

Fig 2: Tire Pressure Monitoring System Circuit Diagram - TC-SST (2 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

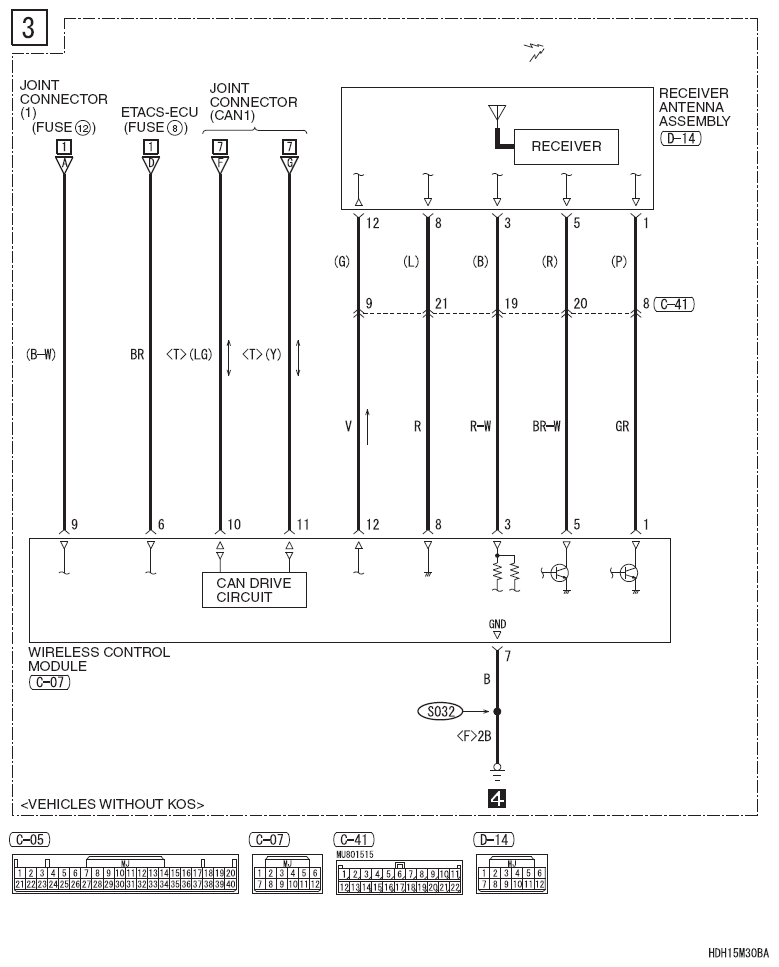

Fig 3: Tire Pressure Monitoring System Circuit Diagram - TC-SST (3 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

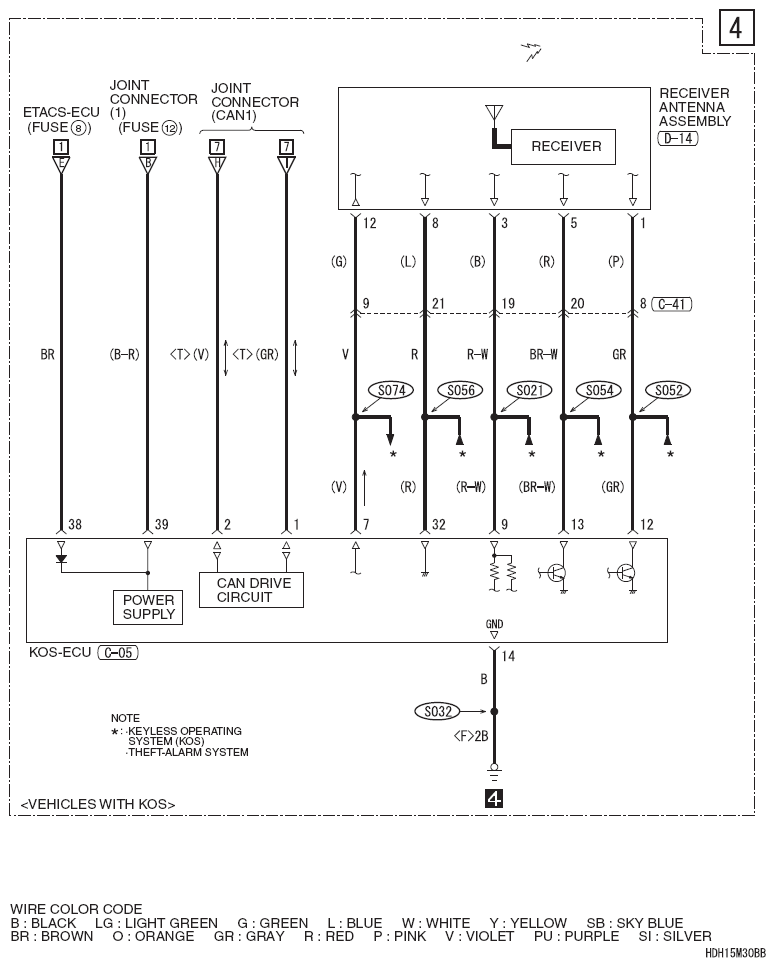

Fig 4: Tire Pressure Monitoring System Circuit Diagram - TC-SST (4 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

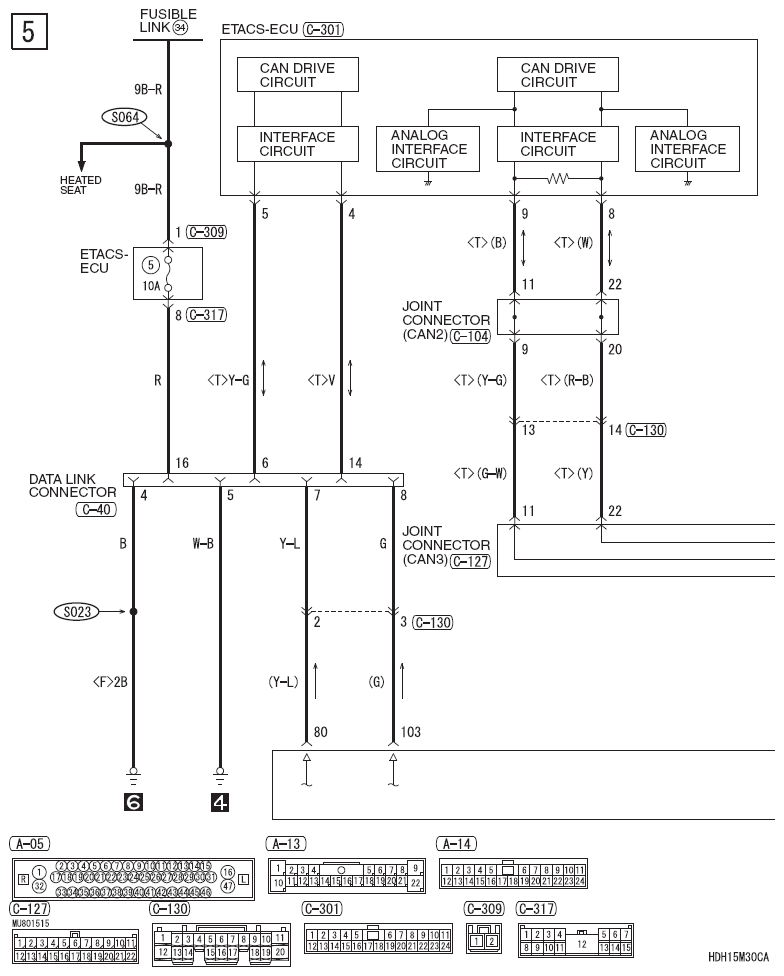

Fig 5: Tire Pressure Monitoring System Circuit Diagram - TC-SST (5 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

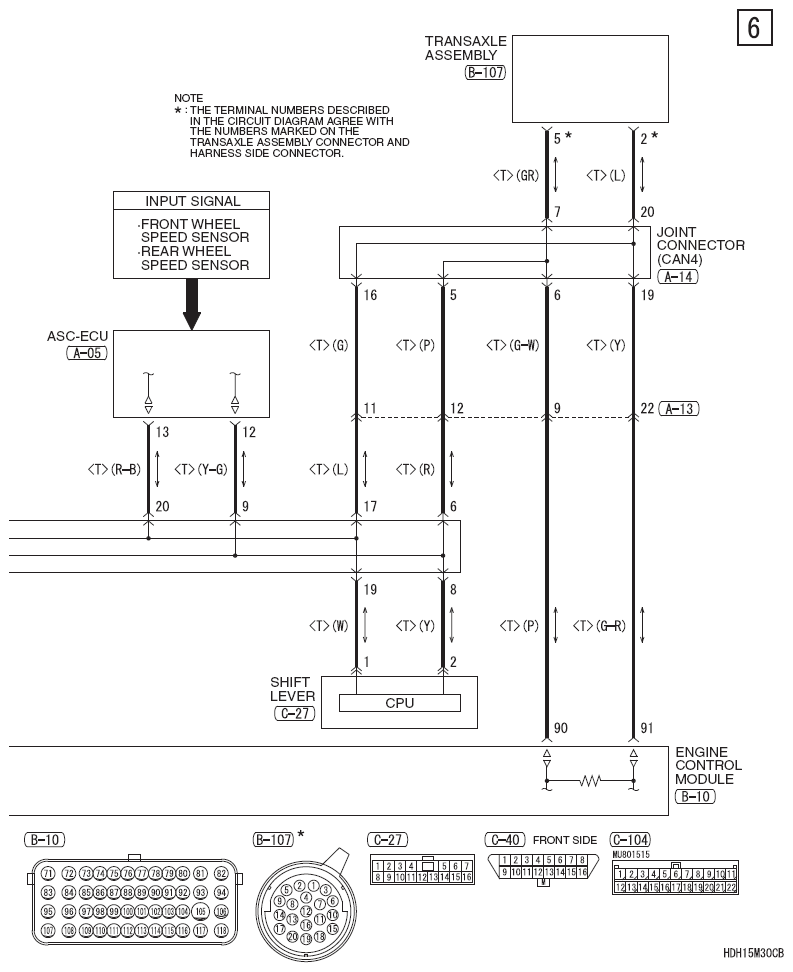

Fig 6: Tire Pressure Monitoring System Circuit Diagram - TC-SST (6 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

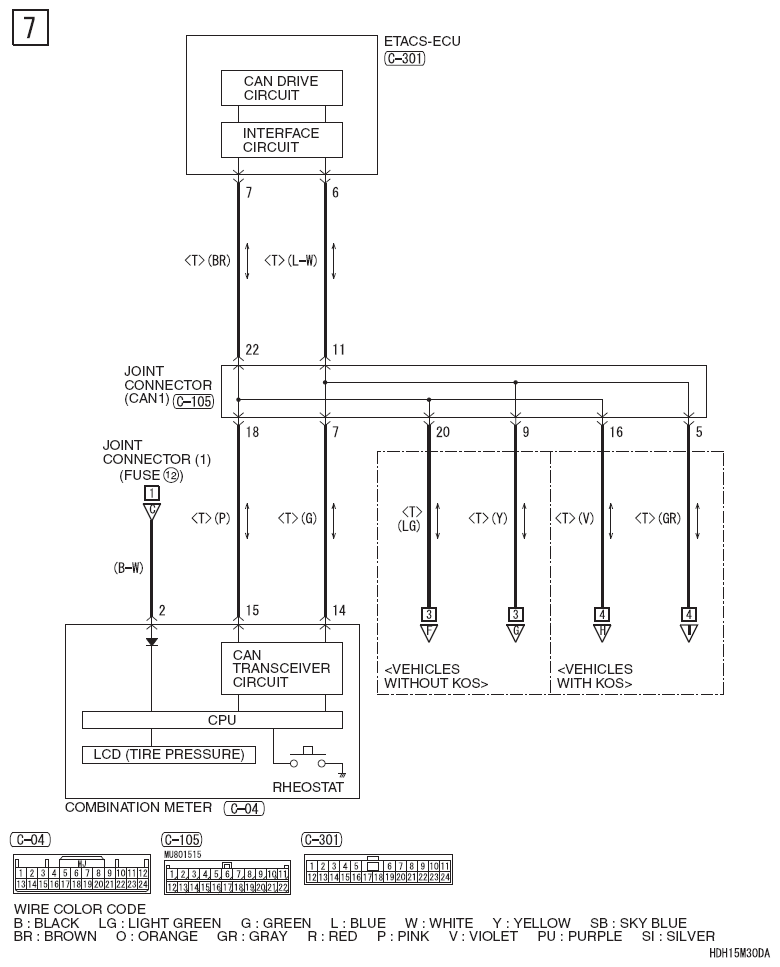

Fig 7: Tire Pressure Monitoring System Circuit Diagram - TC-SST (7 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
