Starting System - TC-SST

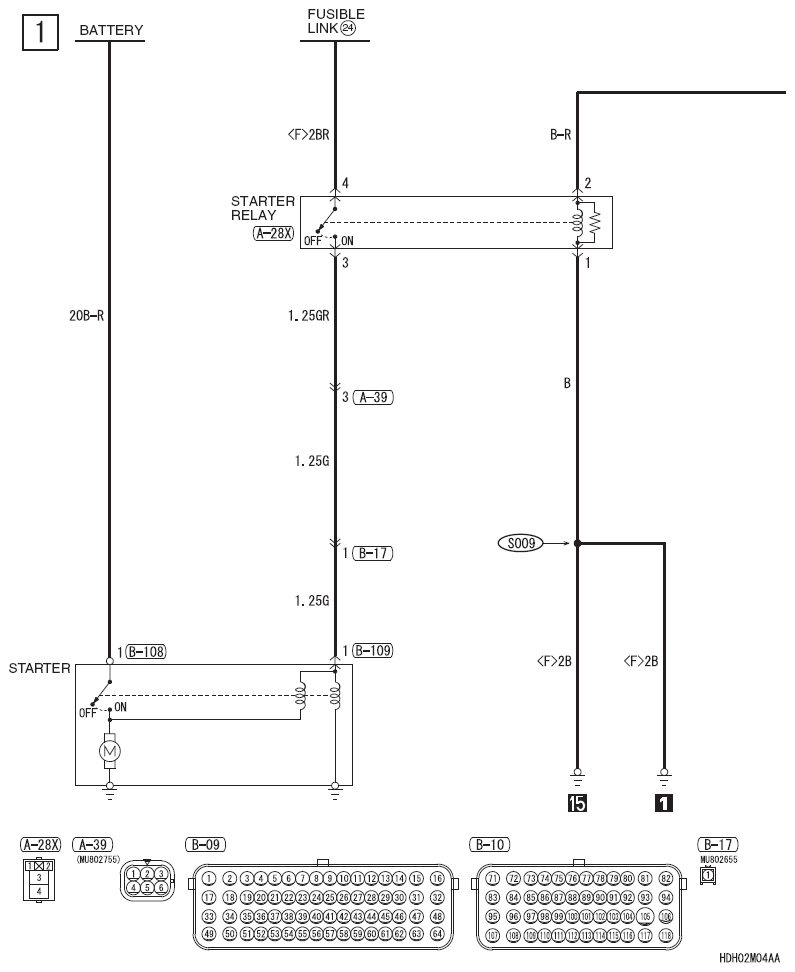

Fig 1: Starting System Circuit Diagram - TC-SST (1 Of 2)
G08304704Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

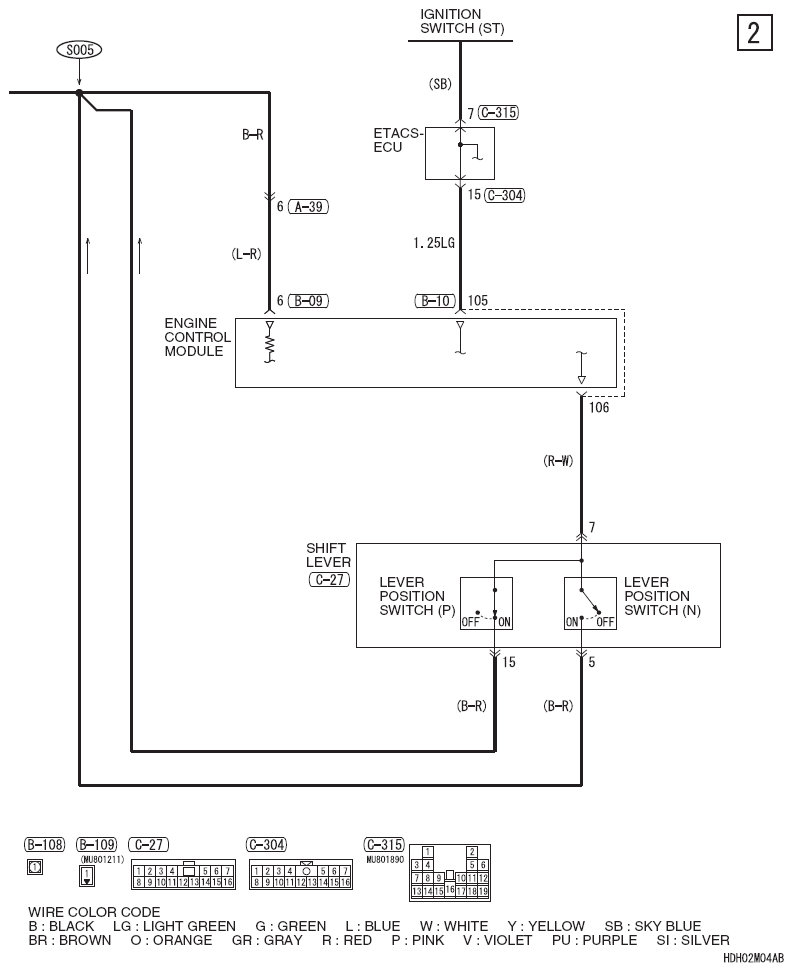

Fig 2: Starting System Circuit Diagram - TC-SST (2 Of 2)
G08304705Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
