Starting System - M/T

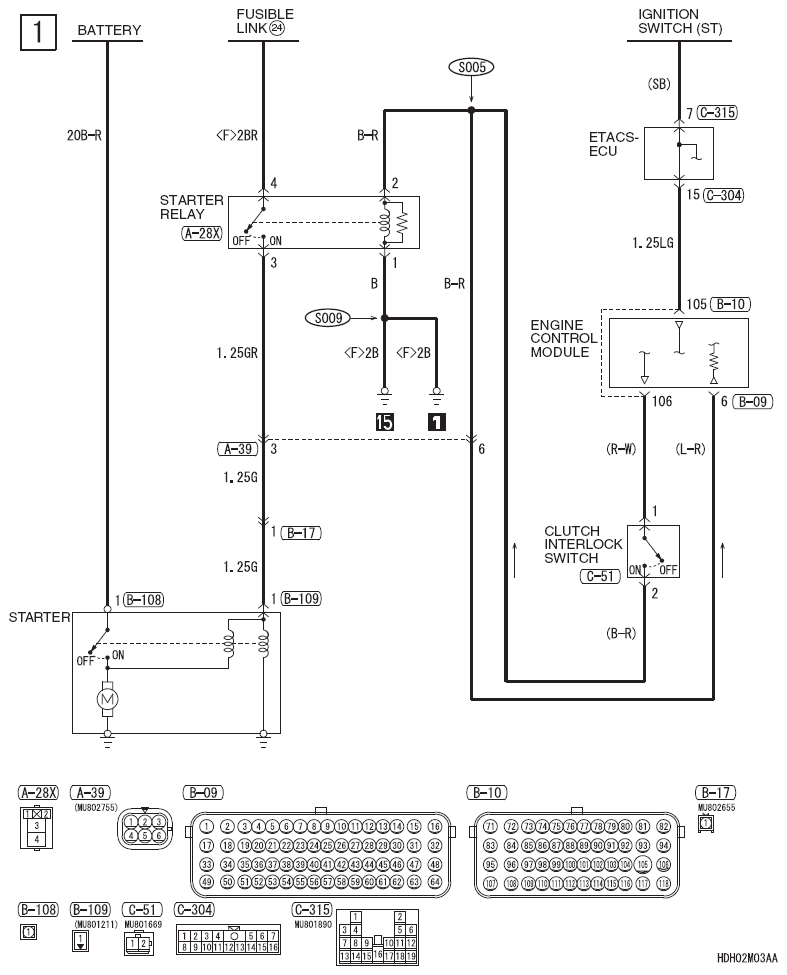

Fig 1: Starting System Circuit Diagram - M/T

G08304703

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
