Spare Connector (For Hands-Free Interface System)

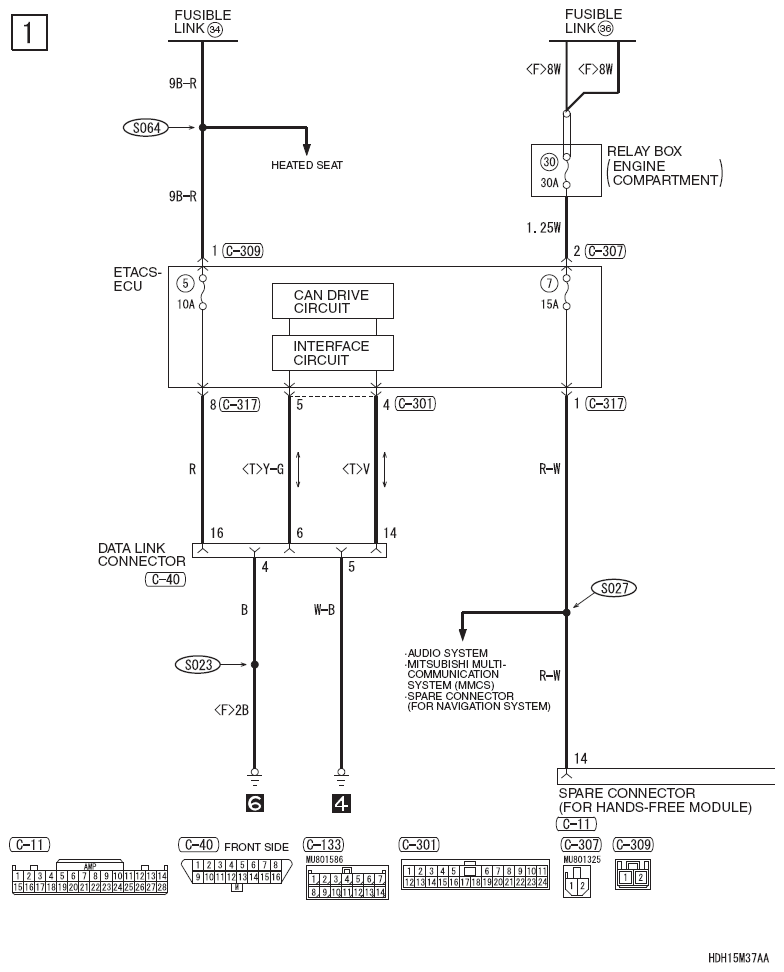

Fig 1: Spare Connector Circuit Diagram - For Hands-Free Interface System (1 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

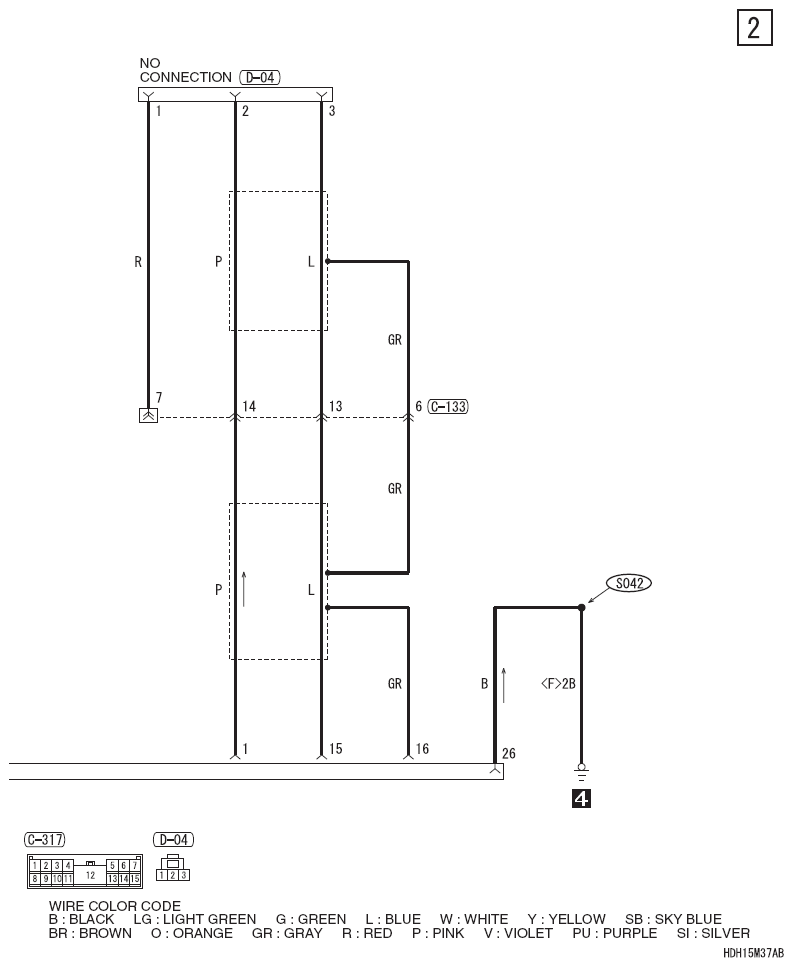

Fig 2: Spare Connector Circuit Diagram - For Hands-Free Interface System (2 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

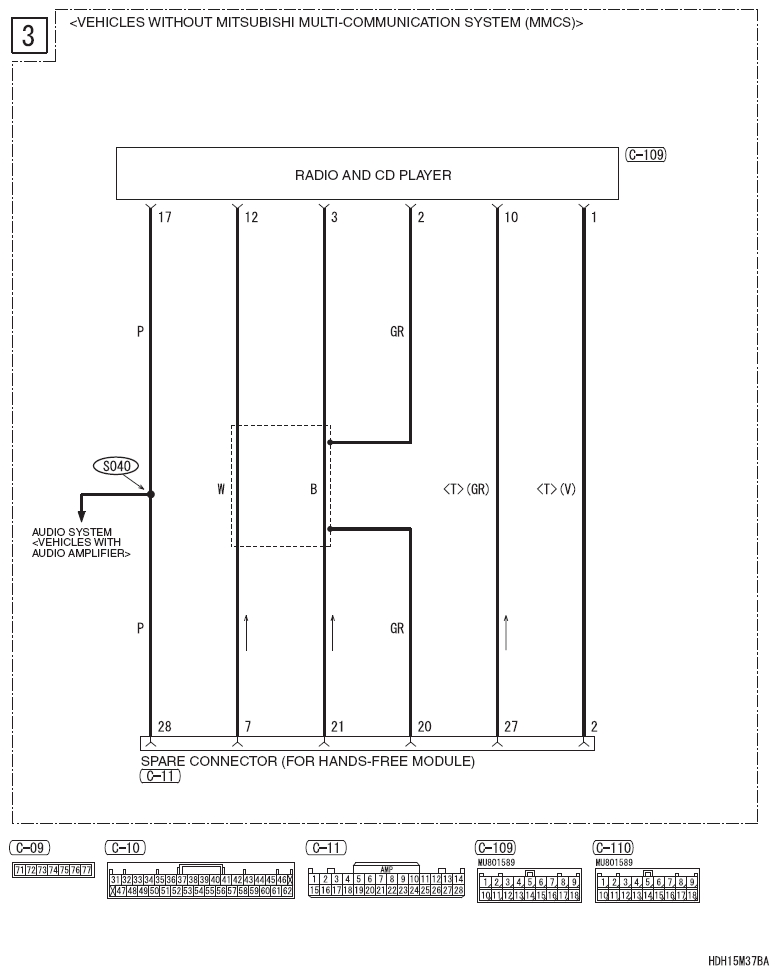

Fig 3: Spare Connector Circuit Diagram - For Hands-Free Interface System (3 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

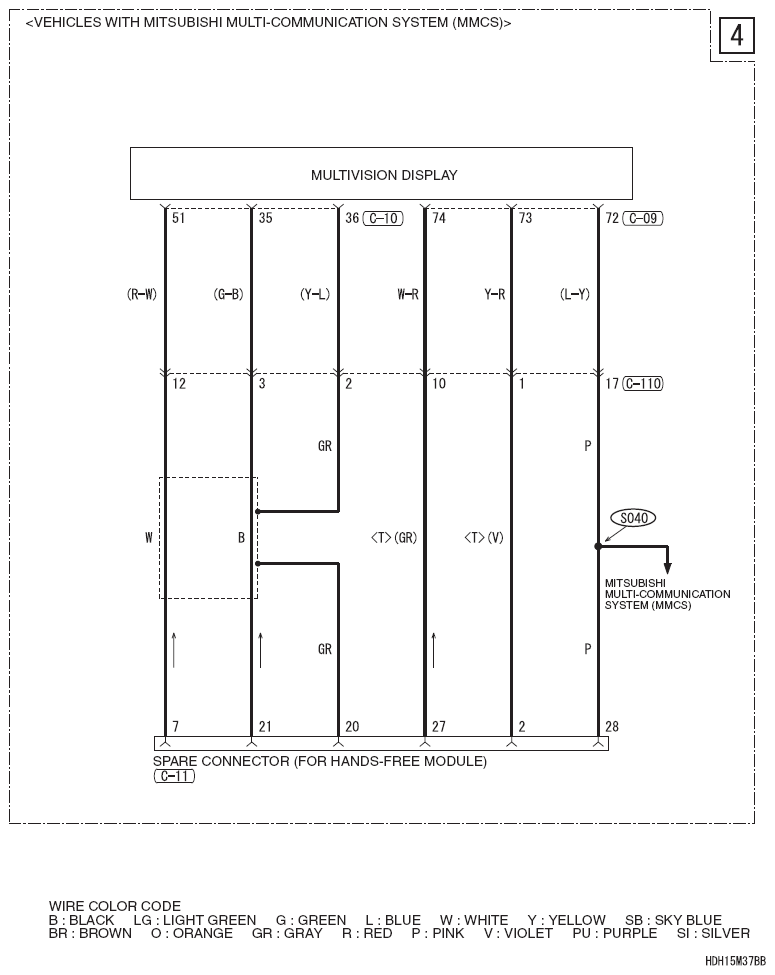

Fig 4: Spare Connector Circuit Diagram - For Hands-Free Interface System (4 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
